Interior trim components › Refit
BodyRefit

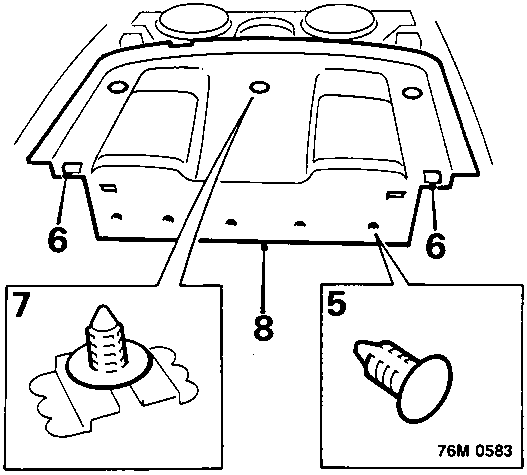

Diagram of rear shelf trim showing fixing studs and components numbered 5, 6, 7, and 8
  1. Remove 5 fixing studs from forward edge of rear shelf trim.
  2. Thread rear seat belts through slits in forward edge of rear shelf trim.
  3. Pull shelf trim forwards and up to release 3 fixing studs at rear.
  4. Remove rear shelf trim.

Do not carry out further dismantling if component is removed for access only

  1. Transfer components to new shelf.

Refit

  1. Position rear shelf trim.
  2. Thread seat belts through slits in shelf trim.
  3. Engage fixing studs and push rear shelf trim rearwards into position.
  4. Secure forward edge of trim with fixing studs.
  5. Fit seat belt guides and tighten screws to 10 Nm.
  6. Engage rear seat belts over guides and fit covers.
  7. Lock rear seat squabs in upright position.
