Remove

Service Repair No. 76.13.66

Remove

1. Remove rear seat cushion, see Rear seat cushion – 400 Series.
2. Remove rear seat squab, see Rear seat squab – 400 Series.

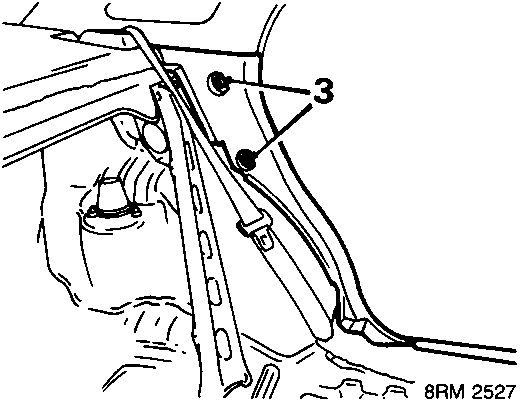

3. Remove 2 screws, lower D post finisher scrivets, and remove lower D post.

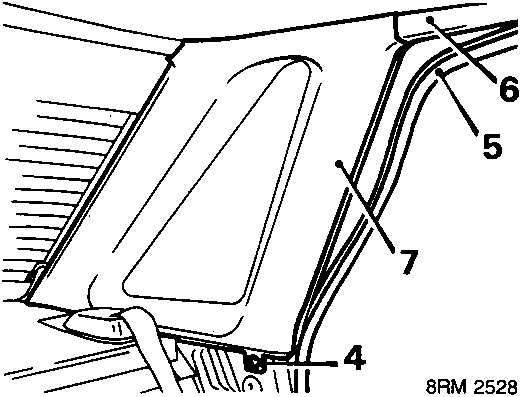

4. Remove centre screw from scrivet securing D/E post finisher. Remove scrivet.
5. Release rear door aperture seal.
6. Release rear section of A and B/C post finisher from across top of rear door.
7. Disengage the D/E finisher from A and B/C finisher. Remove D/E finisher.

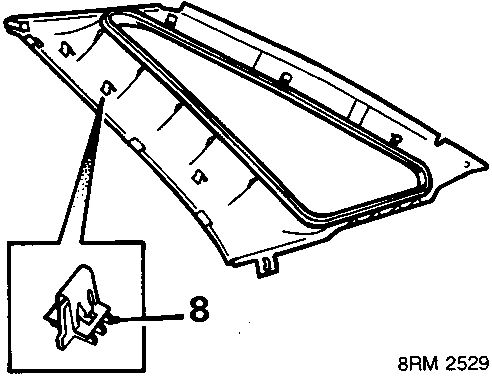

8. Remove clips from D/E finisher and insert into body.

Refit

1. Position D/E post finisher to body. Engage D/E post finisher with A and B/C post finisher.
2. Align the D/E post finisher with clips on D/E post and press home to secure.
3. Fit scrivet to D/E post finisher. Fit screw to centre of scrivet and tighten.
4. Fit rear door aperture seal.
5. Position lower D post finisher and fit 2 scrivets. Fit screw to centre of each scrivet and tighten.
6. Fit rear seat squab, see Rear seat squab – 400 Series.
7. Fit rear seat cushion, see Rear seat squab – 400 Series.
