Interior trim components › Refit
BodyRefit

Service Repair No. 76.67.06

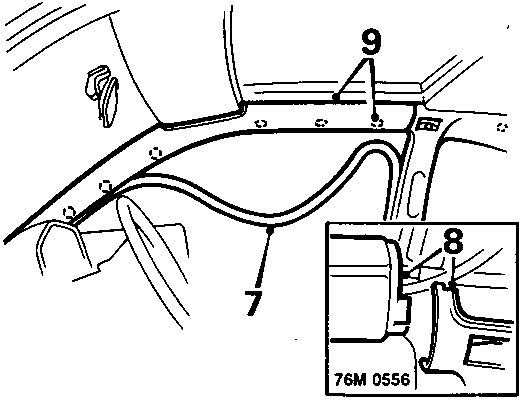

Diagram showing release of seal from upper L.H. 'B' post and cantrail, and rear edge of cantrail trim
  1. Release seal from upper L.H. 'B' post and cantrail.
  2. Release simultaneously rear edge of cantrail trim and adjacent area of rear quarter upper trim.

CAUTION: Take care not to break location slots in rear quarter panel.

  1. Release remaining clips along top edge of rear quarter upper trim panel from body.

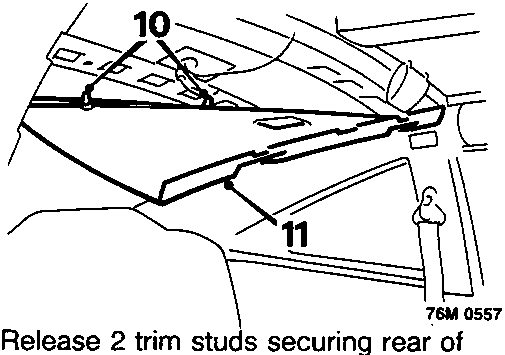

Diagram showing release of trim studs securing rear of headlining to roof and release of headlining from beneath R.H. rear quarter trim panel
  1. Release 2 trim studs securing rear of headlining to roof.
  2. Release headlining from beneath R.H. rear quarter trim panel and remove headlining.

Refit

  1. Position headlining and engage beneath R.H. rear quarter trim panel.
  2. Engage headlining trim studs.
  3. Engage clips to secure L.H. rear quarter upper trim and cantrail trim.
  4. Fit seal to upper 'B' post and cantrail.
  5. Fit seat belt to upper anchorage, fit nut and tighten to 25 Nm.
  6. Fit cover to seat belt fixing.
  7. Connect ultrasonic sensor to multiplug and secure sensor in trim panel.
  8. Fit grab handles.
  9. Fit covers to grab handle fixings.
  10. Fit roof lamp assembly, see ELECTRICAL – Repairs.

Remove

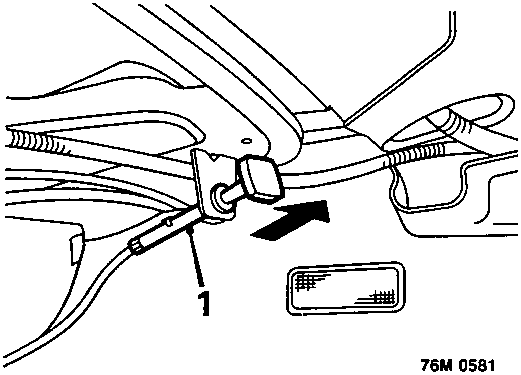

Diagram showing release of both rear seat squab catches and folding squabs forward
  1. Release both rear seat squab catches and fold squabs forward.

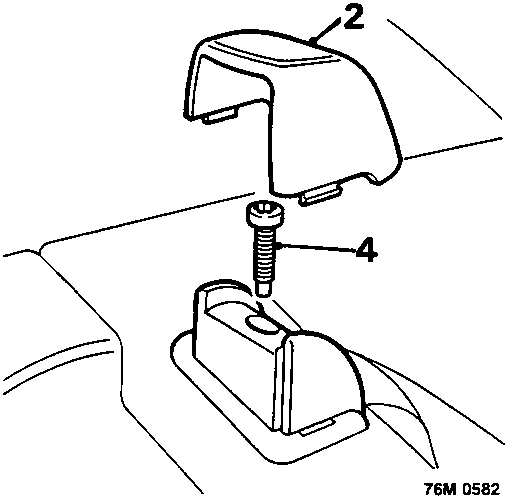

Diagram showing removal of cover from rear seat belt guide, release of seat belts from guides, and removal of belt guide securing bolts
  1. Remove cover from each rear seat belt guide.
  2. Release seat belts from guides.
  3. Remove belt guide securing bolts (TX 30 Torx bit), remove belt guides.
