APPLIQUE – LUGGAGE COMPARTMENT LID

Service Repair No. 76.19.28

Remove

  1. Remove number plate. Open luggage compartment.

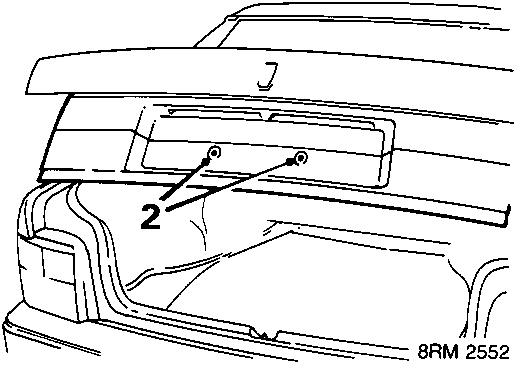

Rear of vehicle showing number plate and applique on luggage compartment lid with callout 2 pointing to screws.
  1. Remove 2 screws, applique to luggage compartment lid.

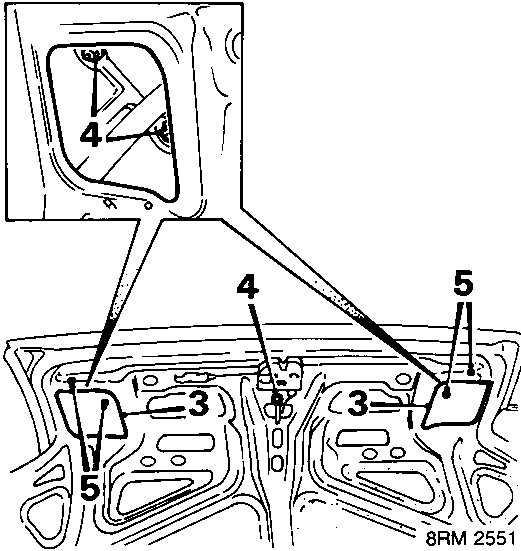

Interior view of luggage compartment lid structure showing internal reinforcement, callouts 3, 4, and 5 pointing to nuts and washers.
  1. Remove 2 covers from luggage compartment lid.
  2. Remove 5 nuts, applique to luggage compartment lid, and remove applique.
  3. Remove 4 sealing washers from applique studs.
  4. Remove badge from applique.

Refit

  1. Fit sealing washers to applique studs.
  2. Remove backing from badge and fit badge to applique.
  3. Position applique to luggage compartment lid and secure with nuts and screws.
  4. Fit covers to luggage compartment lid.
  5. Fit number plate.

REAR QUARTER TRIM PANEL – CABRIOLET

Service Repair No. 76.13.12

Remove

  1. Remove both rear seat squabs and rear seat cushion, see Rear seat squabs and cushion – Cabriolet/Coupe.

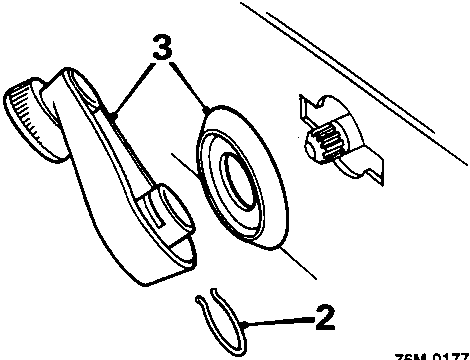

Window regulator handle assembly removed from trim panel, showing handle, bezel, and retaining clip with callouts 2 and 3.
  1. Push window regulator bezel hard against trim pad and remove window regulator handle retaining clip using a small wire hook.
  2. Remove window regulator handle and bezel.

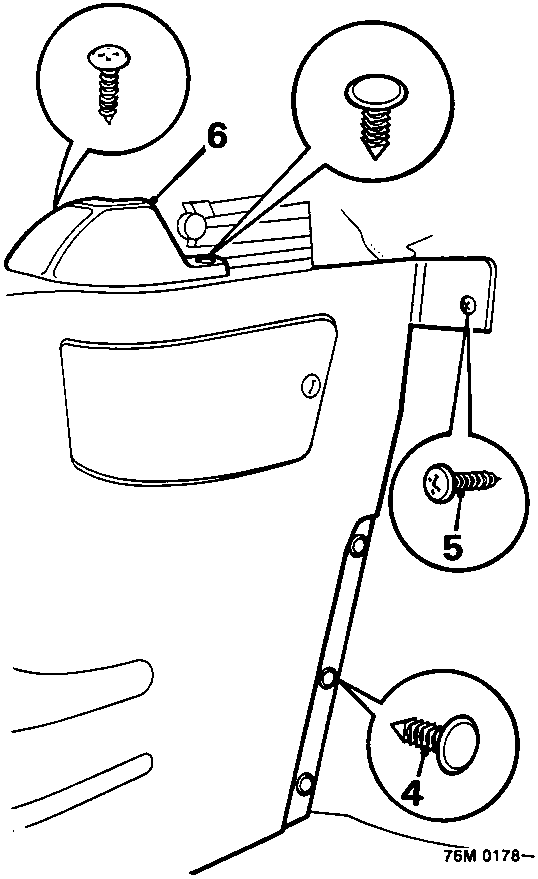

Rear quarter trim panel showing fixing points for trim pad, panel, and hood hinge cover with callouts 4, 5, and 6.
  1. Remove 3 fixing studs securing rear quarter trim pad to luggage compartment side carpet.
  2. Remove fixing screw securing rear quarter trim panel to rear seat squab latch bracket.
  3. Remove fixing stud and screw from hood hinge cover. Remove hood hinge cover.
