Interior trim components › Remove
BodyRemove

Service Repair No. 76.13.12

Remove

  1. Remove rear seat squabs and cushion, see Rear seat squabs and cushion – Cabriolet/Coupe.

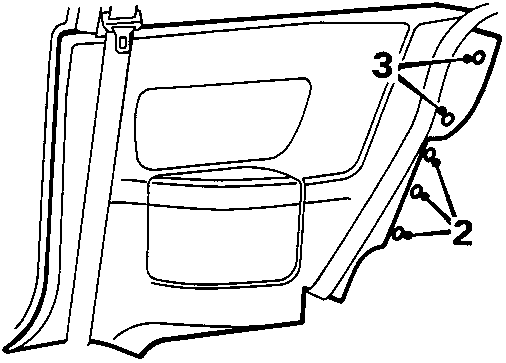

Diagram showing the rear quarter trim panel with callout numbers 2 and 3 indicating fixing studs and screws
  1. Remove 3 fixing studs securing rear quarter trim panel to boot side carpet.
  2. Remove 2 screws securing rear quarter trim panel to rear seat squab bracket.

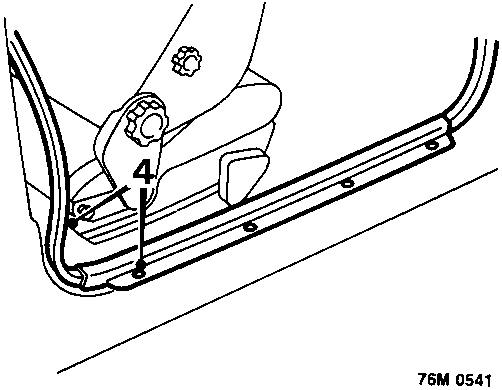

Diagram showing the lower half of the 'B' post with callout number 4 indicating fixing screws and sealing rubber
  1. Remove fixing screws from tread plate and release sealing rubber from lower half of 'B' post.

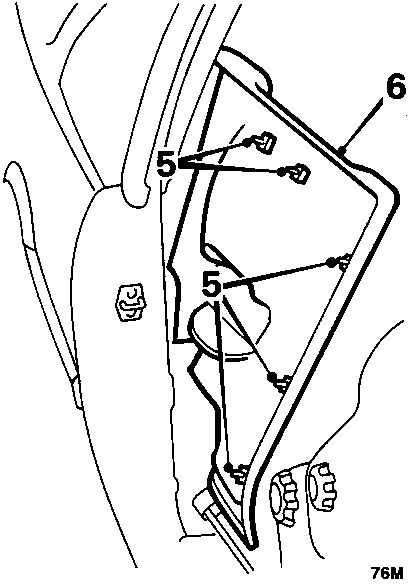

Diagram showing the rear quarter trim panel being removed with callout numbers 5 and 6 indicating studs on 'B' post and waist rail
  1. Pull carefully on rear quarter trim panel to disengage 3 studs on 'B' post and 2 studs on waist rail.
  2. Remove trim panel.

Refit

  1. Position trim pad and engage trim studs.
  2. Fit door seal to lower half of 'B' post and fit tread plate screws.
  3. Fit screws securing trim pad to seat squab panel.
  4. Fit studs securing boot side carpet to trim panel.
  5. Fit rear seat squabs and cushion, see Rear seat squabs and cushion – Cabriolet/Coupe.
