Service Repair No. 76.13.07

Remove

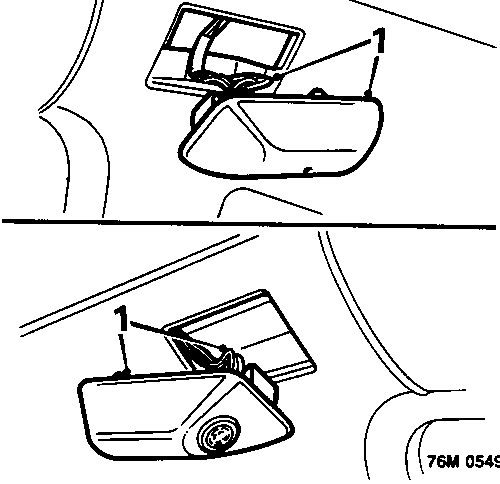

1. R.H. trim: Release Ultrasonic Disable switch from trim panel and disconnect multiplug. L.H. trim: Release ultrasonic sensor from trim panel and disconnect multiplug.

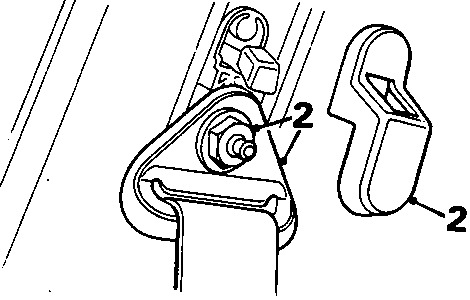

2. Remove cover from seat belt anchorage, remove nut and release belt from anchorage.

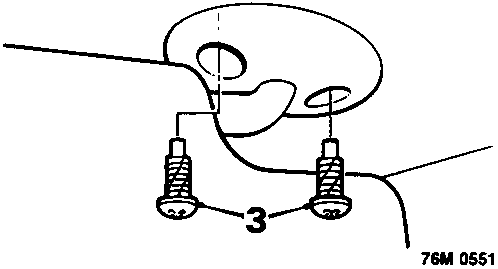

3. Disengage sun visor from clip, remove 2 screws and remove sun visor.

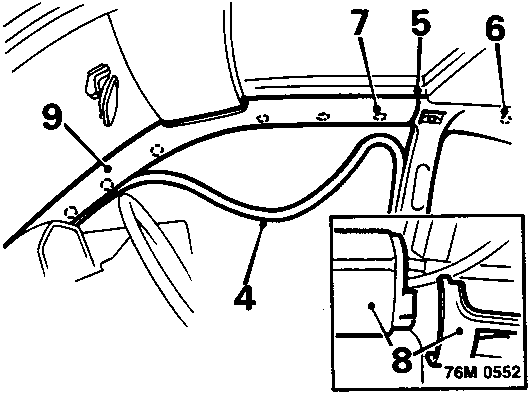

4. Release seal from upper 'B' post, upper 'A' post and cantrail.
5. Release simultaneously rear edge of 'A' post trim and adjacent area of rear quarter trim.

CAUTION: Take care not to break location slots in rear quarter panel.

6. Release remaining clips securing top edge of rear quarter upper trim to body.
7. Release remaining clips securing 'A' post trim to body.
8. Release rearward end of trim from location in rear quarter upper trim panel.
9. Remove 'A' post trim panel.

Refit

1. Position trim panel and locate forward edge beneath fascia.
2. Engage rearward edge of trim panel into rear quarter upper trim panel.
3. Engage clips securing 'A' post and rear quarter upper trim panels to body.
4. Fit seal to upper 'B' post, upper 'A' post and cantrail.
5. Fit sun visor, tighten screws and secure visor to clip.
6. Fit seat belt to upper anchorage, fit nut and tighten to 25 Nm.
7. Fit cover to seat belt fixing.
8. Connect multiplug and secure switch or sensor to trim panel.
