Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Luggage compartment cover mounting panel – tourer

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Interior trim components › Luggage compartment cover mounting panel – tourer
BodyLuggage compartment cover mounting panel – tourer

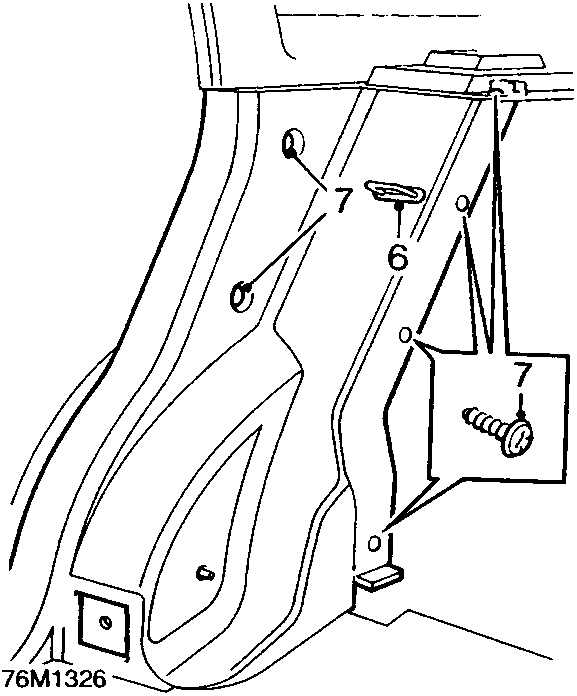

Diagram showing the lower 'D' post finisher and rear seat catch striker rubber with callout numbers 6 and 7.

LUGGAGE COMPARTMENT COVER MOUNTING PANEL – TOURER

Service Repair No. 76.67.12

Remove

  1. Remove luggage compartment cover.
  2. Release rear seat squab and fold forward.

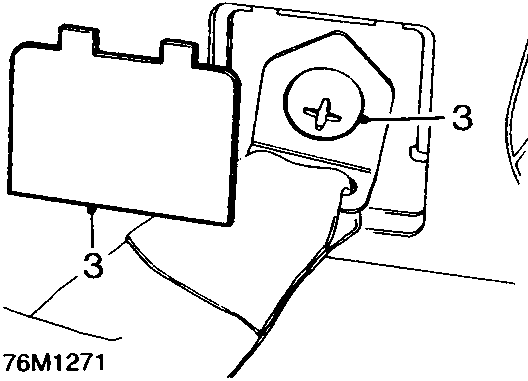

Close-up diagram of the rear seat belt lower anchorage cover and bolt with callout number 3.
  1. Remove cover and bolt from rear seat belt lower anchorage.
  1. Remove rear seat catch striker rubber.
  2. Remove 6 screws securing 'D' post lower finisher and release finisher.

Refit

  1. Position 'D' post lower finisher secure with screws.
  2. Fit rear seat catch striker rubber.
  3. Position seat belt lower anchorage bracket to body, fit bolt and tighten to 32 Nm.
  4. Fit seat belt anchorage point cover.
  5. Position rear door sill finisher and carpet retainer and secure with screws.
  6. Refit rear seat squab, see Rear seat squab – 200 Series.
  7. Refit luggage compartment cover.

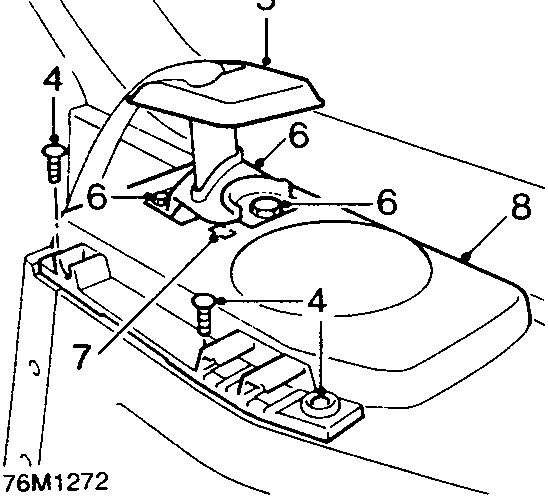

Diagram showing the mounting panel, belt guide, and lower anchorage with callout numbers 4, 5, 6, 7, and 8.
  1. Remove 3 screws securing mounting panel to body.
  2. Release belt guide cover.
  3. Remove 2 bolts securing belt guide to body and release belt guide bracket.
  4. Release clip securing mounting panel to body.
  5. Release mounting panel from 'D/E' post trim finisher and remove.

Refit

  1. Position mounting panel to body and secure with clip.
  2. Position seat belt guide bracket to body, fit bolts and tighten to 9 Nm.
  3. Fit belt guide cover to seat belt and secure to mounting panel.
  4. Fit and tighten screws securing mounting panel to body.
  5. Position seat belt lower anchorage point to body, fit bolt and tighten to 32 Nm.
