Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

'd/e' post trim finisher – tourer

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Interior trim components › 'd/e' post trim finisher – tourer
Body'd/e' post trim finisher – tourer

'D/E' POST TRIM FINISHER – TOURER

Service Repair No. 76.13.66

Remove

  1. Remove 'D' post lower trim finisher, see 'D' Post lower trim finisher – Tourer.
  2. Remove luggage compartment side trim, see Luggage compartment side trim – Tourer.
  3. Remove headlining rear finisher, see Headlining rear finisher – Tourer.

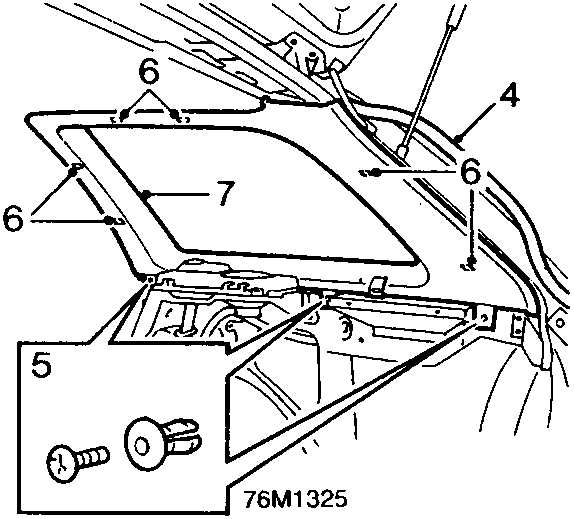

Diagram showing the 'D/E' post finisher area with callout numbers 4, 5, 6, and 7, and reference number 76M1325.
  1. Release taildoor aperture seal from body flange.
  2. Remove 3 screws and scrivet fixings securing trim finisher to 'D/E' post.
  3. Release 6 retaining clips securing finisher to body.
  4. Remove 'D/E' post finisher.

Refit

  1. Position trim finisher to 'D/E' post and secure retaining clips.
  2. Fit 3 scrivet fixings securing trim finisher to 'D/E' post.
  3. Fit luggage compartment side trim, see Luggage compartment side trim – Tourer.
  4. Fit 'D' post lower trim finisher, see 'D' Post lower trim finisher – Tourer.
  5. Fit headlining rear finisher, see Headlining rear finisher – Tourer.
  6. Secure taildoor aperture seal to body flange.

'D' POST LOWER TRIM FINISHER – TOURER

Service Repair No. 76.13.31

Remove

  1. Remove luggage compartment cover.
  2. Remove rear seat squab, see Rear seat squab – 200 Series.
Diagram showing the rear door sill finisher and carpet retainer with a callout number 3, and reference number 76M1268.
  1. Remove 2 screws securing rear door sill finisher and carpet retainer.
  2. Remove sill finisher and carpet retainer.

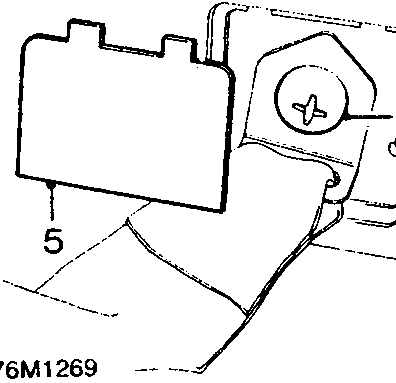

Diagram showing the rear seat belt anchorage area with callout number 5, and reference number 76M1269.
  1. Remove cover and lower anchorage bolt securing rear seat belt to body.
