Interior trim components › Remove
BodyRemove

Service Repair No. 76.67.06

Remove

  1. Remove rear seat squabs and cushion, see Rear seat squabs and cushion – Cabriolet/Coupe.

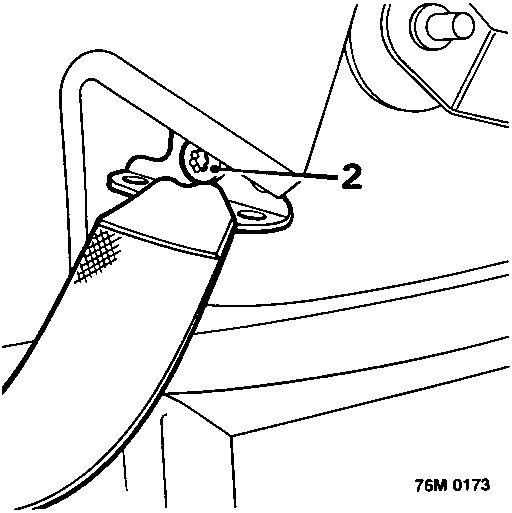

Diagram showing the removal of a lower fixing bolt from a rear seat belt strap, indicated by callout number 2.
  1. Remove lower fixing bolts (TX50 Torx bit) from rear seat belt straps.

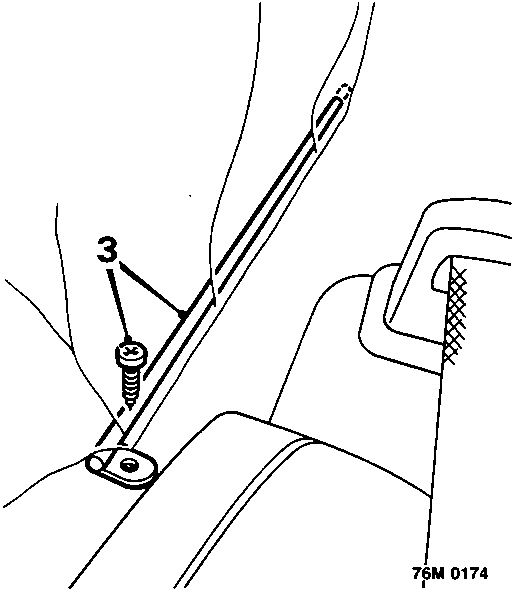

Diagram showing the removal of headlining tension rod screws from the rear shelf area, indicated by callout number 3.
  1. Remove headlining tension rod screws, at either side of rear shelf, and disengage rods from their location holes in body.
  2. Release rear seat squab catches and fold rear seats forward.

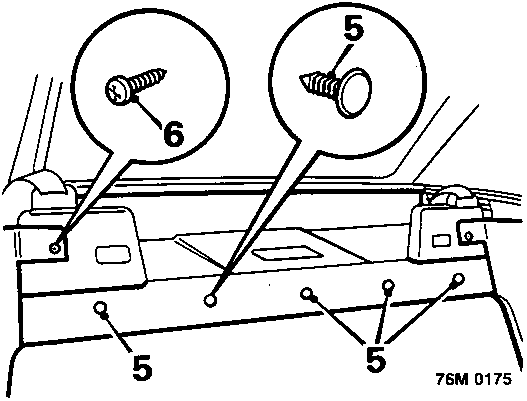

Diagram showing the forward edge of the rear shelf trim with five fixing studs (callout 5) and screws securing the rear quarter trim panel to seat squab latch brackets (callouts 5 and 6).
  1. Remove 5 fixing studs from forward edge of rear shelf trim.
  2. Remove screws securing rear quarter trim panel to seat squab latch brackets.

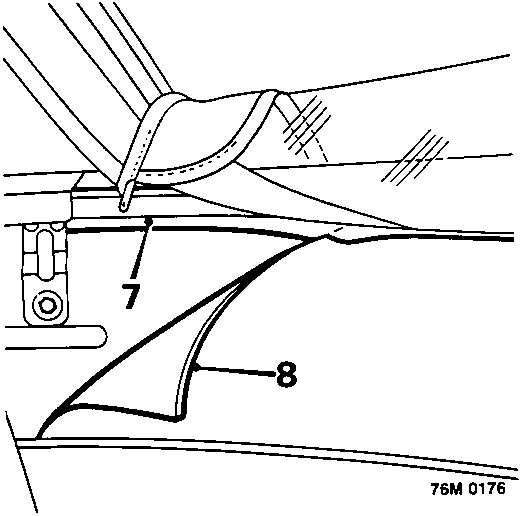

Diagram showing the release of the rear edge of the rear shelf trim from beneath a seal (callout 7) and the removal of the trim itself (callout 8).
  1. Release rear edge of rear shelf trim from beneath seal.
  2. Remove rear shelf trim.

Refit

  1. Position rear shelf trim and thread seat belt straps through.
  2. Engage rear edge of trim beneath seal.
  3. Fit screws securing rear quarter trim casing to rear squab latch brackets.
  4. Fit rear shelf trim fixing studs.
  5. Engage elastic headlining straps over ends of each headlining tension rod and locate rods into body.
  6. Using a small bradawl, align tension rod fixing holes and fit screws.
  7. Fit seat belt straps to lower anchorage points and tighten to 32 Nm.
  8. Fit rear seat squabs and cushion, see Rear seat squabs and cushion – Cabriolet/Coupe.
