Interior trim components › Remove
BodyRemove

Service Repair No. 76.13.13

Remove

  1. Remove rear quarter trim panel, see Rear quarter trim – Coupe
Diagram showing release of Ultrasonic Disable switch from R.H trim panel

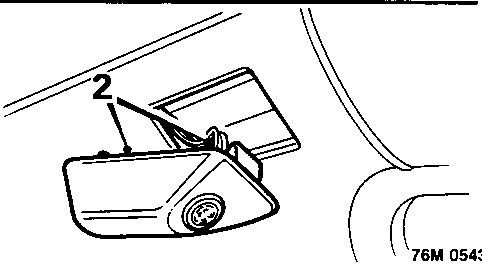

Diagram showing release of Ultrasonic sensor from L.H trim panel
  1. R.H trim: Release Ultrasonic Disable switch from trim panel and disconnect multiplug. L.H trim: Release Ultrasonic sensor from trim panel and disconnect multiplug.

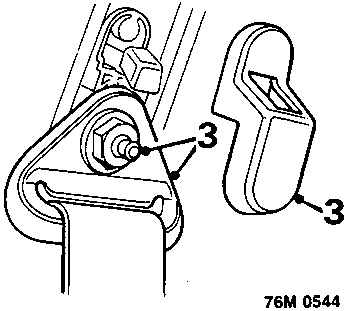

Diagram showing removal of cover from seat belt anchorage
  1. Remove cover from seat belt anchorage, remove nut and release belt from anchorage.

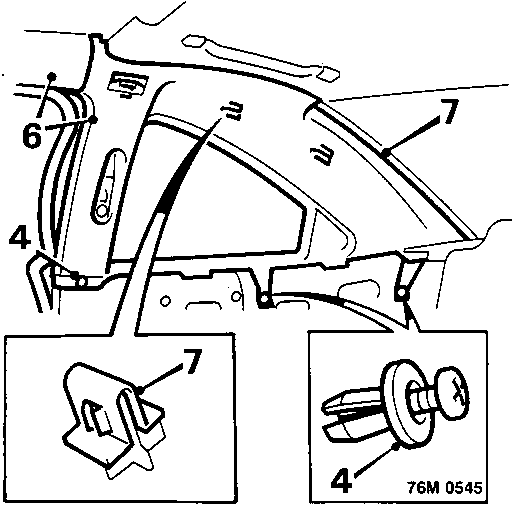

Diagram showing centre screws, scrivet fasteners, seal release, and cantrail trim
  1. Remove centre screws from 3 scrivet fasteners and remove fasteners.
  2. Release seal from upper 'B' post and cantrail.
  3. Release simultaneously rear edge of cantrail trim and adjacent area of rear quarter trim panel.

CAUTION: Take care not to break location slots in rear quarter panel.

  1. Release remaining clips from body, release upper trim from rear edge of cantrail trim and remove.

Refit

  1. Position rear quarter trim panel and engage to rear of cantrail trim.
  2. Engage body clips on rear quarter trim and cantrail trim.
  3. Fit seal to cantrail and upper 'B' post.
  4. Fit scrivet fasteners and centre screws.
  5. Fit seat belt to upper anchorage, fit nut and tighten to 25 Nm.
  6. Fit cover to seat belt fixing.
  7. Connect multiplug and secure switch or sensor to trim panel.
  8. Fit rear quarter trim panel, see Rear quarter trim – Coupe.
