FASCIA

Service Repair No. Fascia Panel 76.46.23
Service Repair No. Fascia Panel access 76.46.23/99

Remove

  1. Disconnect battery earth lead.
  2. Remove front console, see Front console.
  3. Move front seats to rear most position.
  4. Remove radio cassette player see ELECTRICAL – Repairs.

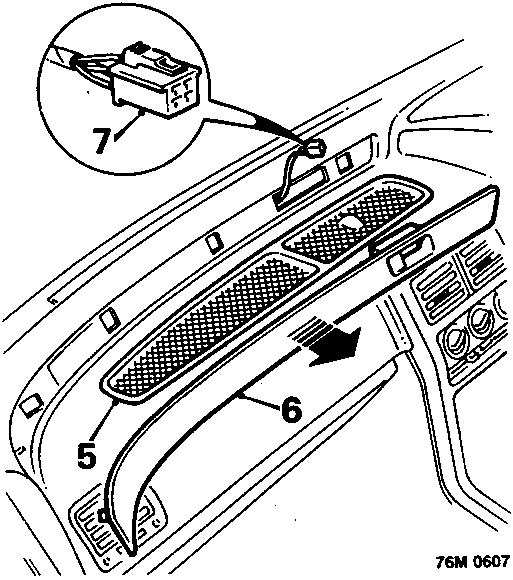

Diagram showing release of fascia finisher and disconnecting clock multiplug
  1. Remove fascia tray mat.
  2. Release fascia finisher complete with clock.
  3. Disconnect clock multiplug.
  4. Remove clock and finisher panel.

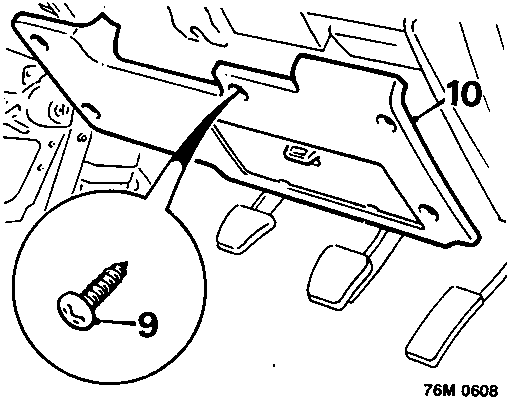

Diagram showing removal of lower panel screws and the lower panel itself
  1. Remove 5 screws, lower panel to fascia.
  2. Remove lower panel.

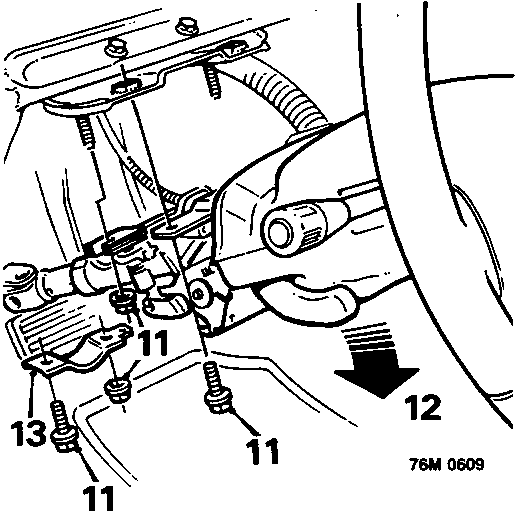

Diagram showing lowering of steering column and removal of securing nuts and bolts
  1. Remove 6 nuts and bolts securing steering column to body.
  2. Lower steering column.
  3. Collect steering column clamp.

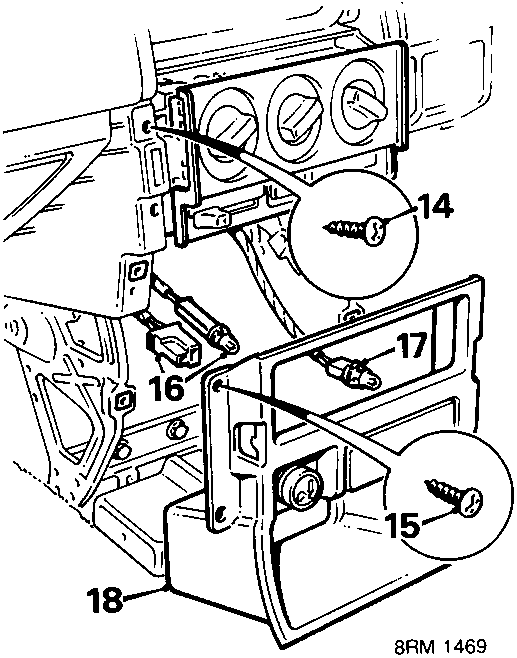

Diagram showing removal of heater control panel, radio box, and disconnection of associated multiplugs and lamps
  1. Remove 4 screws, heater control panel to fascia.
  2. Remove 4 screws, radio box to fascia.
  3. Disconnect cigar lighter multiplug and illumination lamp.
  4. Disconnect ashtray illumination lamp.
  5. Remove radio box.
  6. 1.6 Automatic: Disconnect automatic selector lever multiplug.
