Interior trim components
BodyFascia · page 3 of 4

Do not carry out further dismantling if component is removed for access only

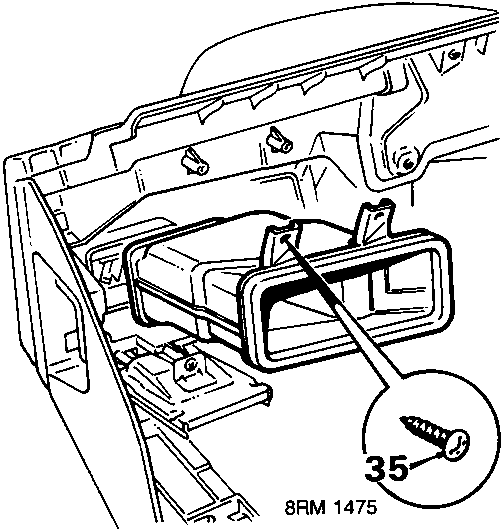

Diagram showing removal of driver's face level duct, identifying screw 35. Reference 8RM 1475.
  1. Remove 4 screws and driver's face level duct.

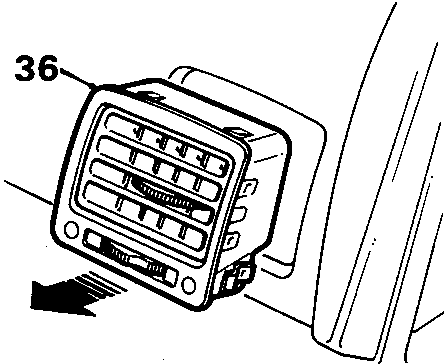

Diagram showing release of clips on driver's face level vent, identified as part 36. Reference 8RM 1476.
  1. Release 2 clips and remove driver's face level vent.

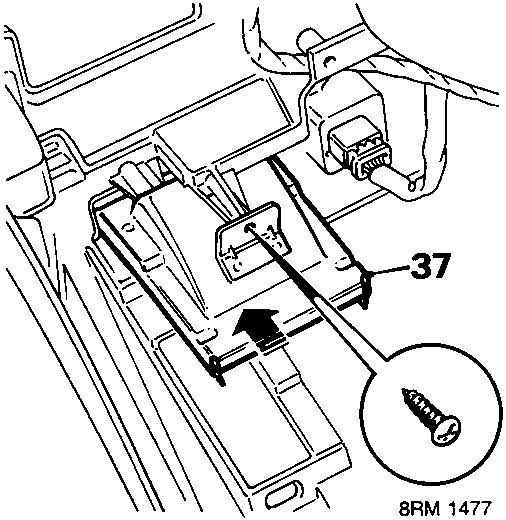

Diagram showing coin tray being opened and removed with 3 screws, identified as part 37. Reference 8RM 1477.
  1. Open coin tray, remove 3 screws and coin tray.

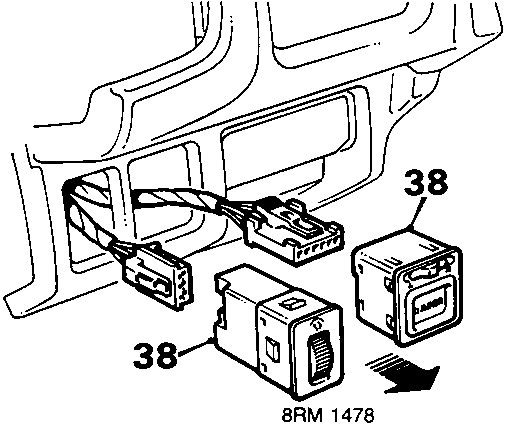

Diagram showing removal of two switches and a switch blank, identified as part 38. Reference 8RM 1478.
  1. Remove 2 switches and switch blank.

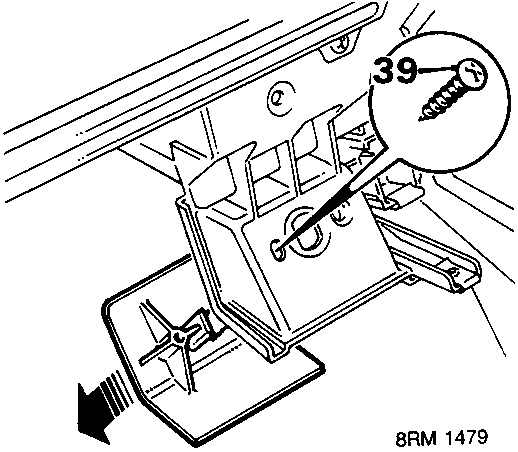

Diagram showing removal of lower blanking plate secured by 2 screws, identified as part 39. Reference 8RM 1479.
  1. Remove 2 screws and lower blanking plate.

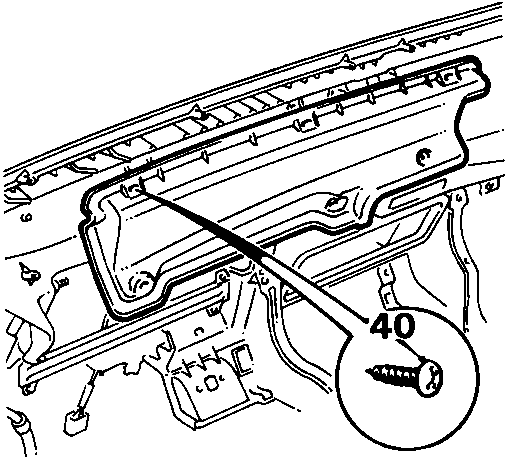

Diagram showing removal of L.H. demister duct secured by 6 screws, identified as part 40. Reference 8RM 1480.
  1. Remove 6 screws and L.H. demister duct.
    41. Remove 6 screws and R.H. demister duct.
