Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Fascia (page 2 of 4)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Interior trim components
BodyFascia · page 2 of 4

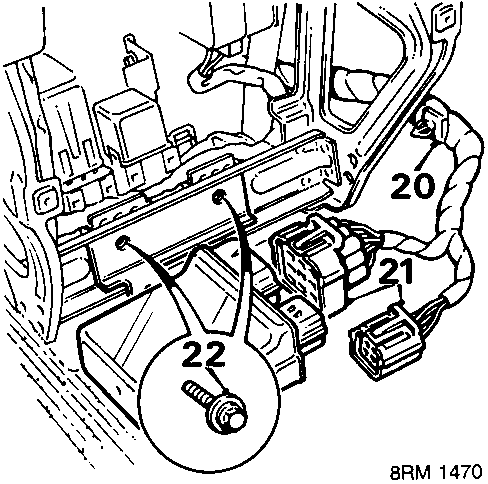

Diagram showing release of harness stud, disconnecting multiplug from main relay, and removing bolts from fascia to tunnel mounting bracket
  1. Release harness stud from fascia
  2. Disconnect multiplug from main relay.
  3. Remove 2 bolts, fascia to tunnel mounting bracket.

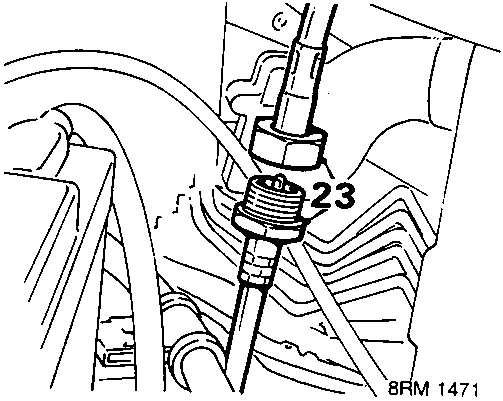

Diagram showing unscrewing and disconnecting union for speedometer cables on 1.4 models
  1. 1.4 models: Unscrew and disconnect union, upper to lower speedometer cables – engine compartment.

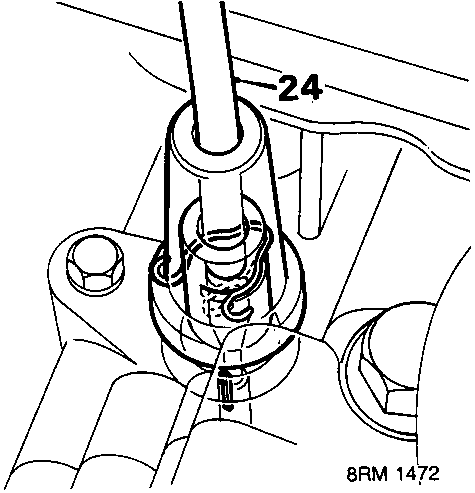

Diagram showing disconnecting speedometer cable from gearbox on 1.6 models
  1. 1.6 models: Disconnect speedometer cable from gearbox.

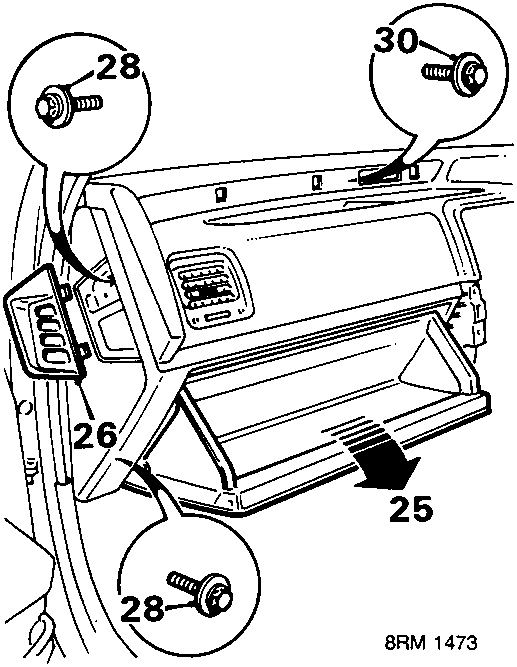

Diagram showing opening glovebox, removing door demister ducts, removing bolts from fascia R.H. and L.H., closing glovebox, and removing bolt at fascia centre
  1. Open glovebox.
  2. Remove 2 door demister ducts.
  3. Remove 2 bolts, fascia R.H.
  4. Remove 2 bolts, fascia L.H.
  5. Close glovebox.
  6. Remove bolt at fascia centre.

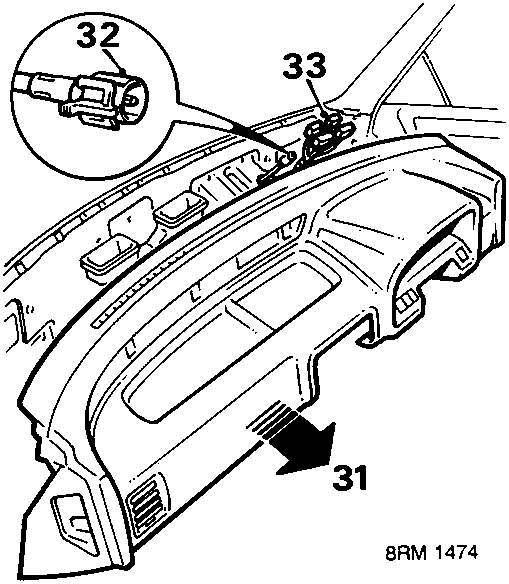

Diagram showing pulling fascia forward, disconnecting cable from speedometer, disconnecting multiplugs, and removing fascia panel assembly with assistant
  1. Pull fascia forward for access to multiplugs and speedometer cable.
  2. Disconnect cable from speedometer.
  3. Disconnect 4 multiplugs, fascia to body harness.
  4. With assistant, remove fascia panel assembly from car.
