Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

5 Door

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Interior trim components › 5 Door
Body5 Door

5 Door

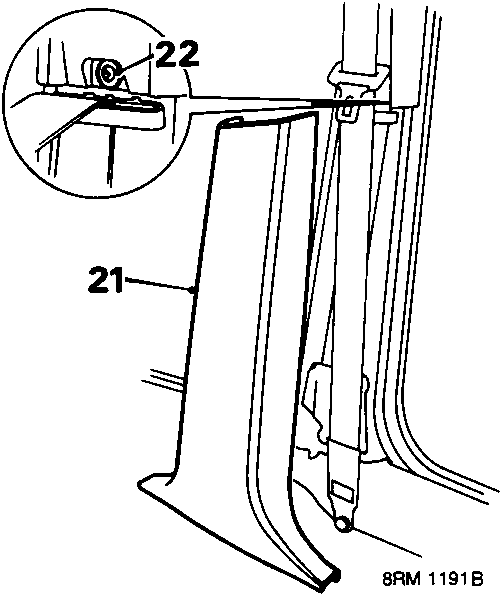

Diagram showing release of lower finisher from 'B/C' post and removal of screw fastener securing top finishers, with callouts 21 and 22.
  1. Release lower finisher from each 'B/C' post.
  2. Remove screw fastener securing top finishers.

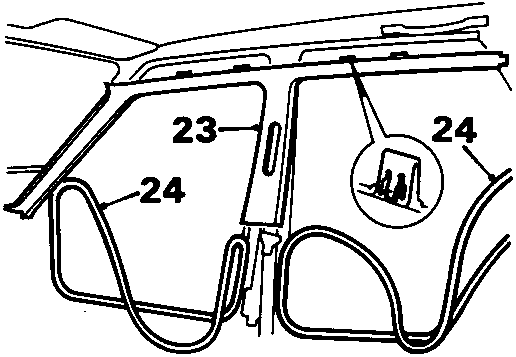

Diagram showing release of door sealing rubber from top of door aperture and removal of 'A' and 'B/C' finishers, with callouts 23 and 24.

3 and 5 Door

  1. Release door sealing rubber from the top of each door aperture.
  2. Remove 'A' and 'B/C' finishers.

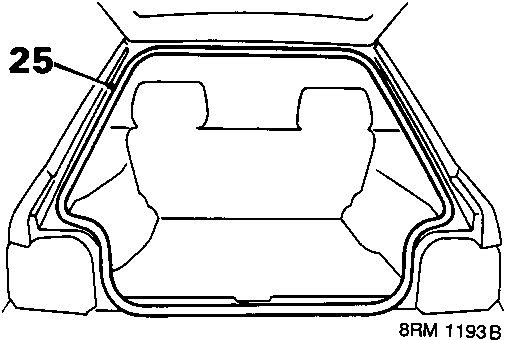

Diagram showing release of taildoor sealing rubber from top and side of aperture, with callout 25.
  1. Release taildoor sealing rubber from top and side of aperture.
  2. Lower rear squabs.

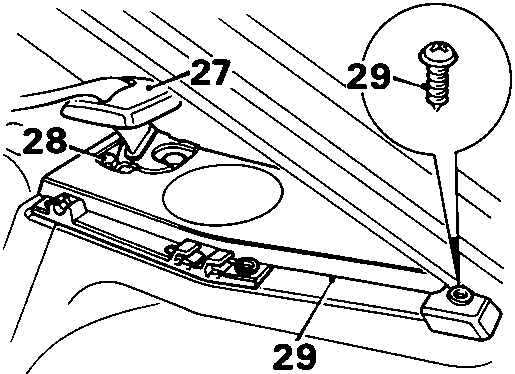

Diagram showing release of rear seat belt escutcheon, removal of bolts securing rear seat belt guide, and removal of screws securing rear speaker finisher, with callouts 27, 28, and 29.
  1. Release rear seat belt escutcheon.
  2. Remove 2 bolts securing rear seat belt guide.
  3. Remove 4 screws securing rear speaker finisher, place aside.
  4. Repeat the above operations for the other side.

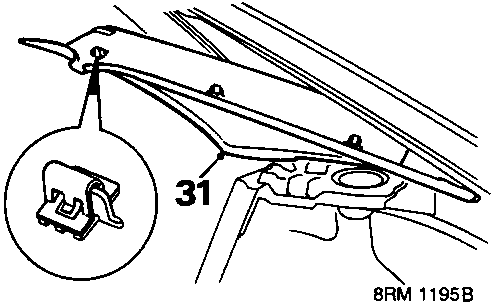

Diagram showing release of both rear quarter light finishers, with callout 31.
  1. Release both rear quarter light finishers.

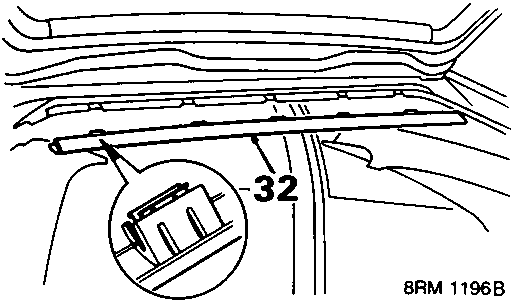

Diagram showing removal of headlining finisher from taildoor aperture, with callout 32.
  1. Remove headlining finisher from taildoor aperture.
  2. Manual sun roof: Remove 2 screws and sunroof handle.
  3. Release the Ultrasonic Disable switch and Ultrasonic sensor from the headlining.
  4. Disconnect the connectors from the switch and the sensor and remove the units.
