Refit

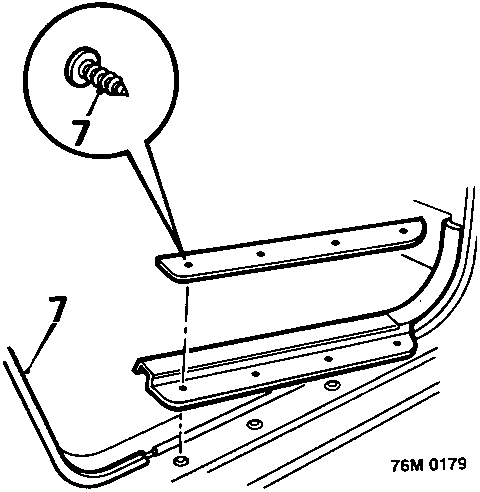

7. Remove 4 fixing screws from tread plate and release sealing rubber from lower half of 'B' post.

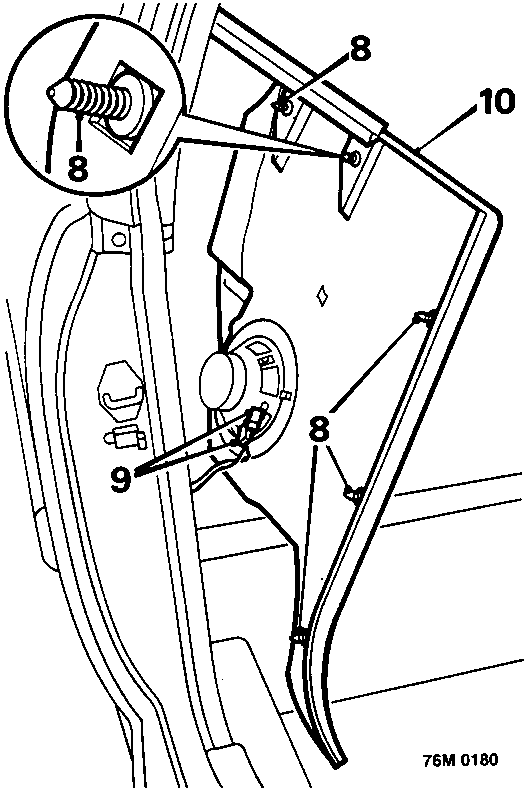

8. Pull carefully on rear quarter trim panel to disengage 3 fixing studs on 'B' post and 2 studs on waist rail.

CAUTION: If undue force is used to disengage studs, trim pad backing foam may be damaged.

9. Disconnect Lucar connectors from speaker.
10. Raise trim panel over lip on waist rail and remove trim pad.

Refit

1. Transfer components from old trim pad as appropriate.
2. Position trim pad. Fit Lucar connectors to speaker.
3. Manoeuvre trim pad over lip on waist rail and press pad in area of fixings to engage studs.
4. Fit door seal to lower half of 'B' post and fit tread plate screws.
5. Fit hood hinge cover and secure using fixing stud and screw.
6. Fit screw securing trim pad to seat squab latch bracket.
7. Fit studs securing trim panel to luggage conpartment side carpet.
8. Cabriolet: Fit bezel and handle to window regulator spindle.
9. Fit rear seat squabs and cushion, see Rear seat squabs and cushion – Cabriolet/Coupe.
