Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Interior trim components › Remove
BodyRemove

All models

Service Repair No. 76.64.15

Remove

  1. Remove rear seat cushion, see Rear seat cushion – 400 Series.
  2. Remove rear seat squab, see Rear seat squab – 400 Series.

Models with sun roof

  1. Open sun roof. Disconnect battery earth lead.
Diagram showing rear seat and sun roof handle area with callout numbers 4 and 5
  1. Remove screw, sun roof handle to sun roof, and remove handle.
  2. Remove 2 screws, escutcheon to sun roof, and remove escutcheon.

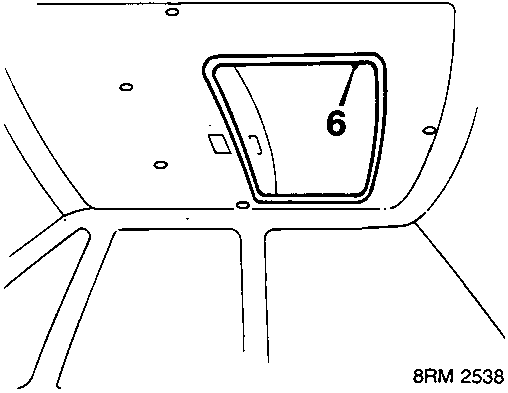

Diagram showing headlining around sun roof aperture with callout number 6
  1. Remove sun roof aperture seal finisher.
  2. Release headlining from sun roof aperture.

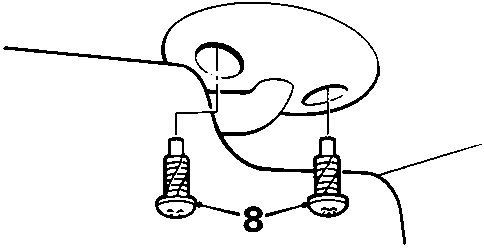

Diagram showing sun visor mounting area with callout number 8
  1. Release clip and remove 2 screws securing each sun visor. Remove 2 sun visors.

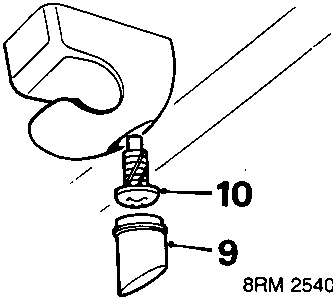

Diagram showing sun visor clip assembly with callout numbers 9 and 10
  1. Remove blanking plug from each sun visor clip.
  2. Remove screw, each sun visor clip to body, and remove both sun visor clips.

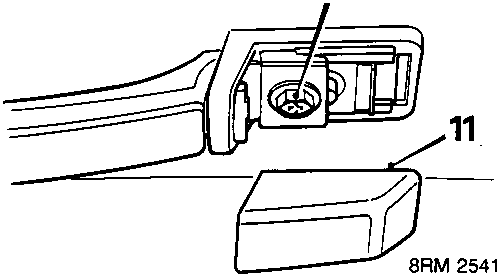

Diagram showing grab handle assembly with callout number 11
  1. Remove 2 covers and 2 screws securing each grab handle.
  2. Remove 3 grab handles.
  3. Remove interior lamp, see ELECTRICAL – Repairs.
  4. Remove head restraint from each front seat.
