Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Refit

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Interior trim components › Refit
BodyRefit

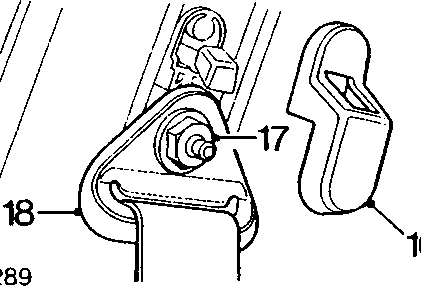

Diagram showing seat belt upper anchorage point with callout numbers 16, 17, and 18
  1. Remove cover from each seat belt upper anchorage point.
  2. Remove nut securing each front seat belt upper anchorage point to 'B/C' post.
  3. Release seat belts from 'B/C' posts.

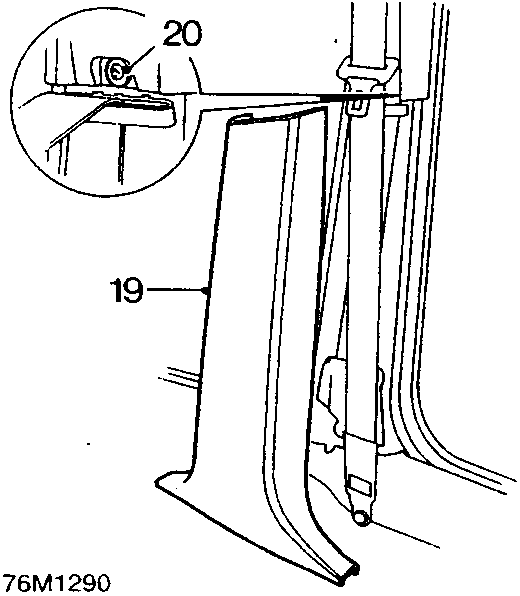

Diagram showing release of B/C post trim finisher and scrivets with callout numbers 19 and 20
  1. Release 'B/C' post lower trim finishers from body.
  2. Remove 2 scrivet fixings securing bottom edge of 'B/C' post upper trim finishers.
  3. Remove luggage compartment cover
  4. Remove headlining rear finisher, see Headlining rear finisher – Tourer.

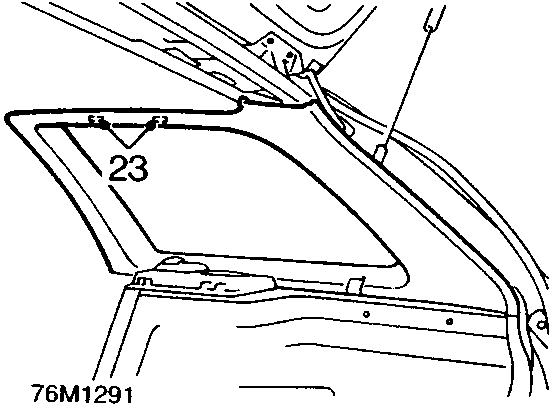

Diagram showing release of D/E post trim finisher with callout number 23
  1. Release LH and RH 'D/E' post trim finishers from retaining clips.

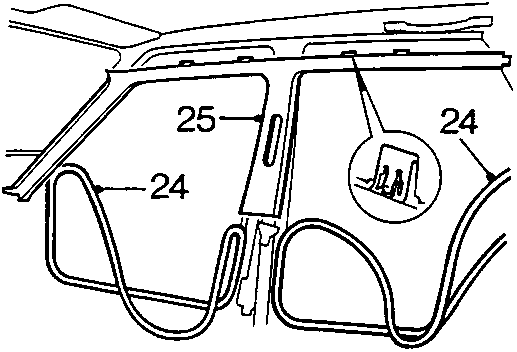

Diagram showing release of door aperture seals and post trim finishers with callout numbers 24 and 25
  1. Release upper, front and rear door aperture seals from body flanges.
  2. Release LH and RH 'A' and 'B/C' post upper trim finishers from retaining clips and remove.

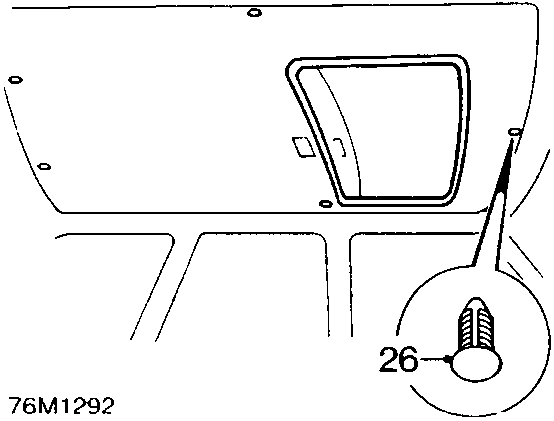

Diagram showing removal of studs securing headlining to roof with callout number 26
  1. Remove 5 studs securing headling to roof.
  2. Remove headlining from vehicle (use assistance).

Refit

  1. Position headlining in vehicle and align to roof (use assistance).
  2. Fit trim studs to secure headlining to roof.
  3. Position alarm ultrasonic module, connect multiplug and secure to headlining.
  4. Fit LH and RH 'A' and 'B/C'post upper trim finishers.
  5. Fit scrivet fixings securing base of 'B/C' post upper trim finishers.
  6. Secure 'B/C' post lower trim finishers.
  7. Secure LH and RH 'D/E' post trim finishers to body.
  8. Secure front and rear door aperture seals to body flanges.
  9. Fit headlining rear finisher, see Headlining rear finisher – Tourer.
  10. Fit luggage compartment cover.
  11. Position front seat belt upper anchorage points to mountings, fit nuts and tighten to 32 Nm.
  12. Fit seat belt upper anchorage point covers.
  13. Fit front seat head restraints.
  14. Fit interior lamp, see ELECTRICAL – Repairs.
