BodyTaildoor trim pad – tourer
  1. Position grab handles, tighten screws and fit covers.
  2. Fit drivers side headlinig plugs.
  3. Position sun visor clips, tighten screws and fit covers.
  4. Position sun visors, fit and tighten screws.
  5. Secure sun visors to clips.
  6. Fit sun roof aperture seal finisher.
  7. Connect battery earth lead.

TAILDOOR TRIM PAD – TOURER

Service Repair No. 76.34.11

Remove

Car workshop manual diagram showing brake line routing and connection points

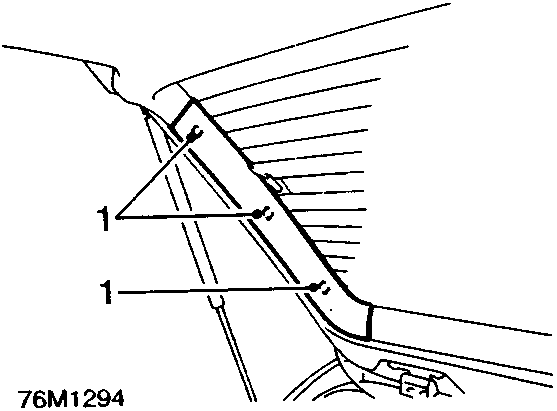

Diagram showing release of clips securing side trim finisher to taildoor
  1. Release 3 clips securing side trim finisher to taildoor and remove side trim finisher.
  2. Release 8 clips securing trim pad to taildoor.

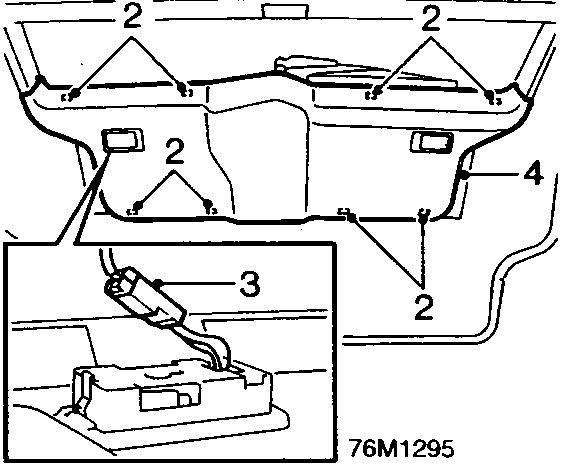

Diagram showing disconnecting taildoor lamp multiplugs and removal of trim pad
  1. Disconnect 2 taildoor lamp multiplugs.
  2. Remove taildoor trim pad.

Do not carry out further dismantling if component is removed for access only

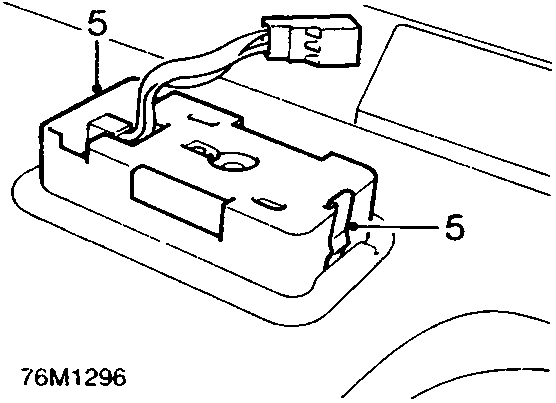

Diagram showing retaining clips and lamp assemblies on the back of the trim pad
  1. Remove 8 retaining clips from trim pad.
  2. Release retaining clips and remove 2 lamp assemblies from trim pad.
  3. Fit 2 lamp assemblies to trim pad.
  4. Fit 8 retaining clips to trim pad.

Refit

  1. Position trim pad and connect 2 taildoor lamp multiplugs.
  2. Secure 8 trim pad retaining clips.
  3. Position side trim finisher and secure clips.
