BodyLuggage compartment side trim – tourer · page 1 of 2
  1. Fold rear seat squab into position and secure.
  2. Fit luggage compartment cover.

LUGGAGE COMPARTMENT SIDE TRIM – TOURER

Service Repair No. 76.49.15

Remove

  1. Remove luggage compartment cover.
  2. Remove luggage compartment carpet.
  3. Remove spare wheel cover board.
  4. Remove luggage compartment finisher, see Luggage compartment finisher.
  5. Release rear seat squab and fold forward.

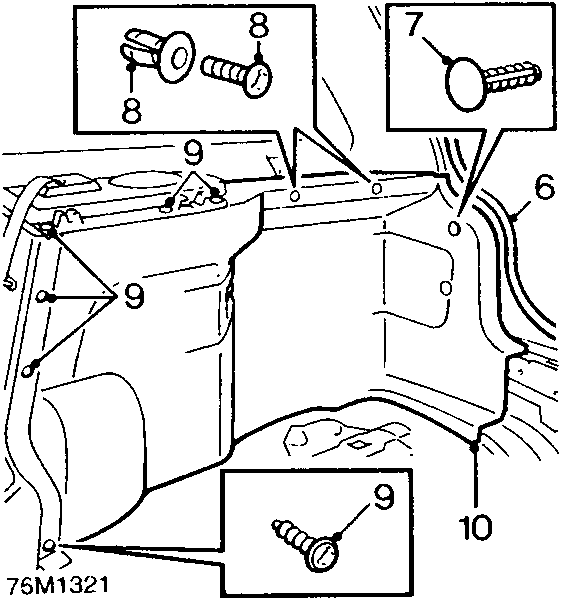

Diagram of luggage compartment side trim showing numbered fasteners (8, 9, 10) and seal (6).
  1. Release taildoor aperture seal from body flange.
  2. Remove trim fastener securing side trim to rear panel.
  3. Remove 2 screws and scrivet fixings securing side trim to body.
  4. Remove 6 screws securing side trim to body.
  5. Remove luggage compartment side trim.

Refit

  1. Fit and align luggage compartment side trim.
  2. Fit 2 scrivet fixings securing side trim to body.
  3. Fit 6 screws securing side trim to body.
  4. Secure side trim to rear panel with trim fastener.
  5. Fold back and secure rear seat squab to latch.
  6. Fit luggage compartment finisher, see Luggage compartment finisher.
  7. Secure taildoor aperture seal to body flange.
  8. Fit spare wheel cover board and luggage compartment carpet.
  9. Refit luggage compartment cover

HEADLINING REAR FINISHER – TOURER

Service Repair No. 76.64.12

Remove

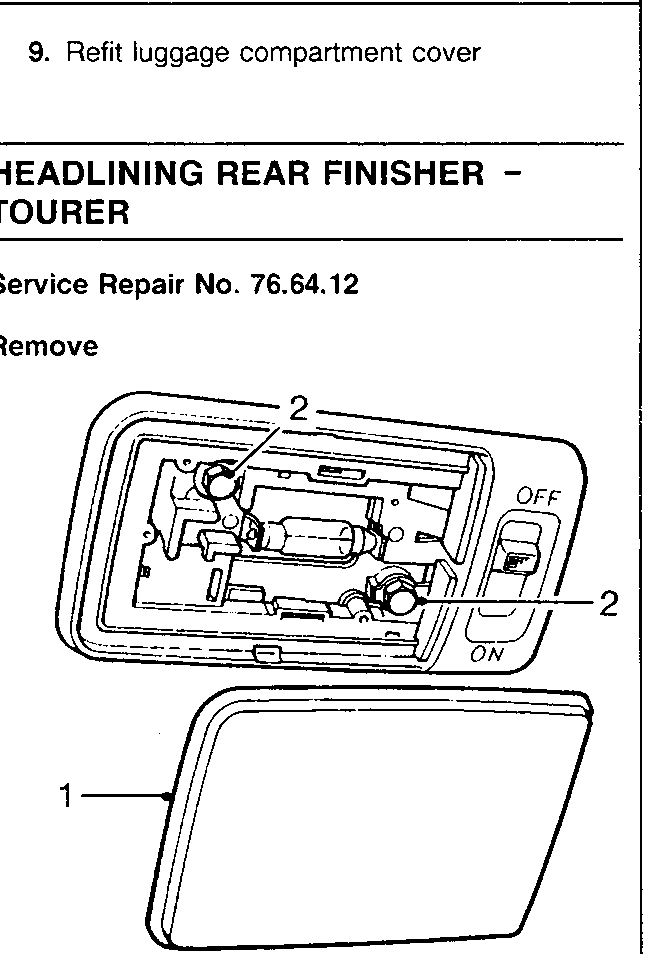

Diagram of headlining rear finisher lamp assembly showing lens (1), bolts (2), and ON/OFF switch.
  1. Release interior light lens from finisher.
  2. Remove 2 bolts securing lamp assembly to roof panel.
  3. Release lamp assembly from finisher and disconnect multiplug.
  4. Remove lamp assembly.

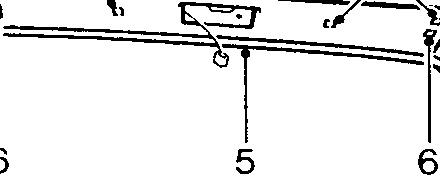

Diagram of headlining rear finisher attachment points showing clips (6), seal (5), and fasteners (7).
  1. Release tailgate aperture seal from body flange.
  2. Release 6 clips securing headlining rear finisher to roof.
  3. Remove headlining rear finisher.

Refit

  1. Position rear headlining finisher and secure retaining clips.
  2. Secure tailgate aperture seal to body flange.
  3. Fit lamp assembly, connect multiplug and position to finisher.
  4. Fit 2 bolts securing lamp assembly and fit lamp lens.
