Interior trim components › Remove
BodyRemove

Service Repair No. 76.52.02

Remove

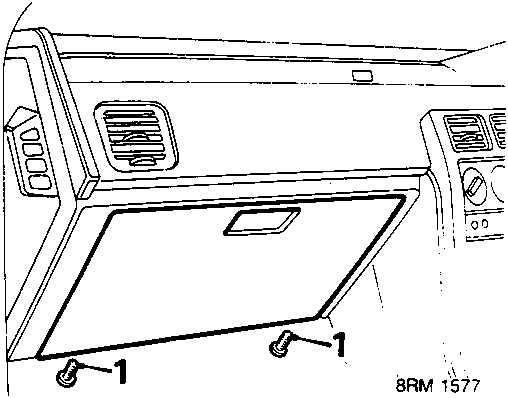

Diagram showing the glovebox with two screws labeled 1 securing it to the support rail.
  1. Remove 2 screws, glovebox to support rail.
  2. Open glovebox.

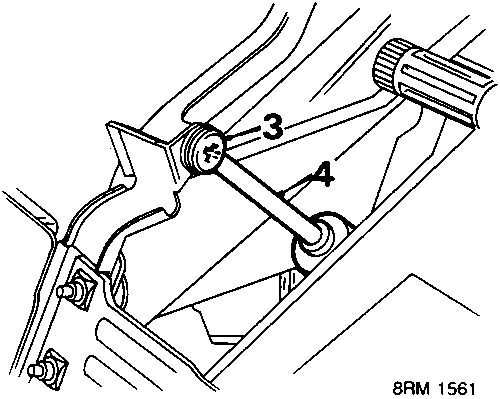

Diagram showing the inside of the glovebox area with a damper assembly, screw labeled 3, and damper labeled 4.
  1. Remove screw, damper to fascia.
  2. Remove glovebox.

Do not carry out further dismantling if component is removed for access only

  1. Remove screw, damper to glovebox.
  2. Remove damper.

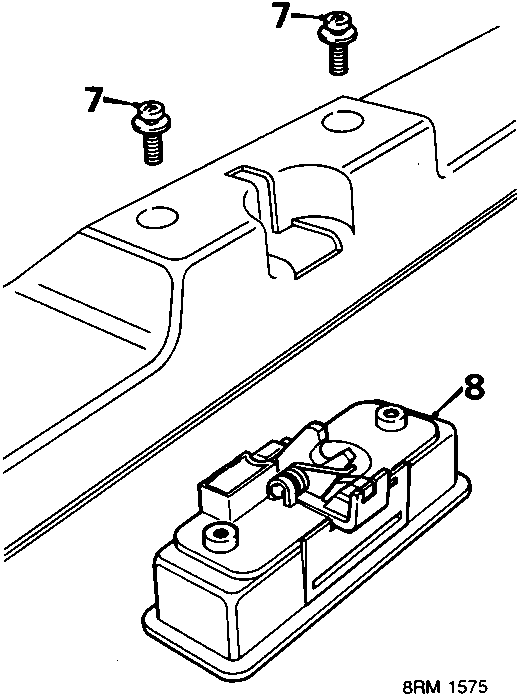

Diagram showing the top edge of the glovebox with two screws labeled 7 and a separate lock mechanism labeled 8.
  1. Remove 2 screws, lock to glovebox.
  2. Remove lock.
  3. Transfer components removed to new glovebox.

Refit

  1. Position glovebox to fascia and tighten damper screw.
  2. Fit but do not tighten screws to support rail.
  3. Close glovebox, equalise gaps and tighten screws.
