Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Refit

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Interior trim components › Refit
BodyRefit

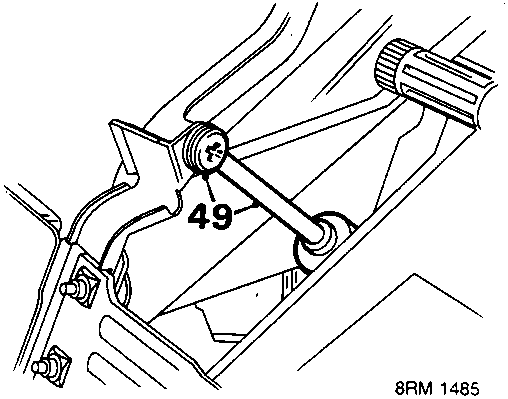

Diagram showing screw 49 securing the glovebox damper to the vehicle structure
  1. Remove screw, glovebox damper.

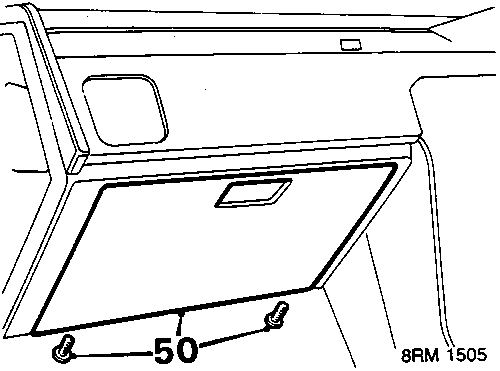

Diagram showing two screws and the glovebox lid in the dashboard
  1. Remove 2 screws and glovebox lid.

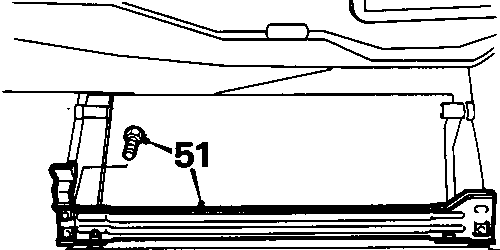

Diagram showing three screws (51) securing the glovebox support rail
  1. Remove 3 screws and glovebox support rail.

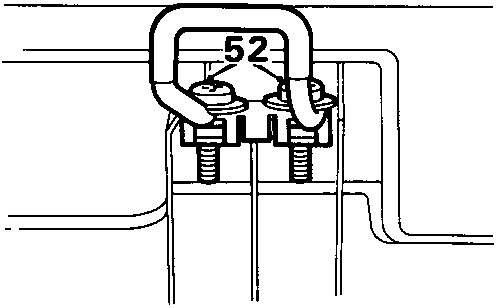

Diagram showing two screws (52) securing the glovebox striker plate
  1. Remove 2 screws and glovebox striker plate.
  2. Transfer components removed to new panel.

Refit

  1. With assistant, position fascia in vehicle.
  2. Align and fit heater control panel.
  3. Connect fascia to body harness multiplugs.
  4. Connect speedometer cable to speedometer.
  5. Align fascia to mounting brackets.
  6. Fit fascia centre, R.H. and L.H. bolts, position fascia and tighten bolts to 9 Nm.
  7. Fit bolts fascia to tunnel mounting bracket and tighten to 9 Nm.
  8. Connect multiplug to main relay and harness stud to fascia.
  9. 1.6 Automatic: Connect automatic selector lever multiplug.
  10. Position radio cassette player box in panel.
  11. Connect cigar lighter multiplug and illumination lamp.
  12. Connect ashtray illumination lamp.
  13. Fit radio cassette player box to fascia.
  14. Fit heater control panel to fascia.
  15. Fit clamp and secure steering column to body, see STEERING – Repairs.
  16. Fit lower panel to fascia.
  17. Connect clock multiplug and fit fascia finisher panel.
  18. Fit fascia tray mat.
  19. Fit radio cassette player, see ELECTRICAL – Repairs.
  20. Fit front console, see Front console.
  21. Connect battery earth lead.
