Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Fascia (page 4 of 4)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Interior trim components
BodyFascia · page 4 of 4

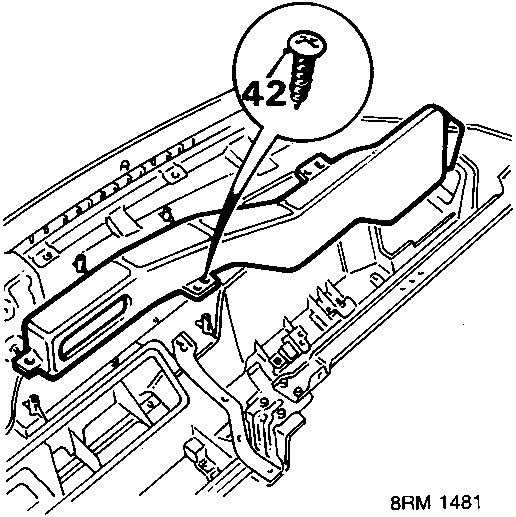

Diagram showing location of screw 42 on the passenger's door demister duct
  1. Remove 3 screws and passenger's door demister duct.

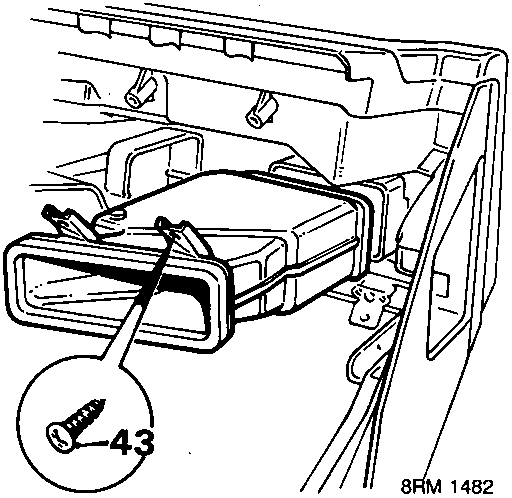

Diagram showing location of screw 43 on the passenger's face level duct
  1. Remove 4 screws and passenger's face level duct.

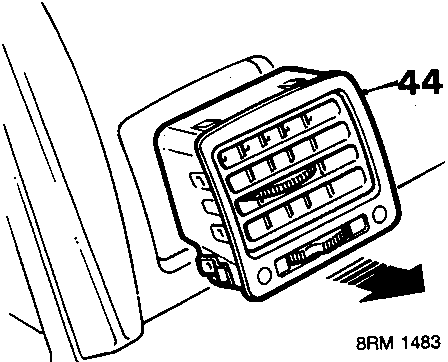

Diagram showing release of clips to remove passenger's face level vent 44
  1. Release 2 clips and remove passenger's face level vent.

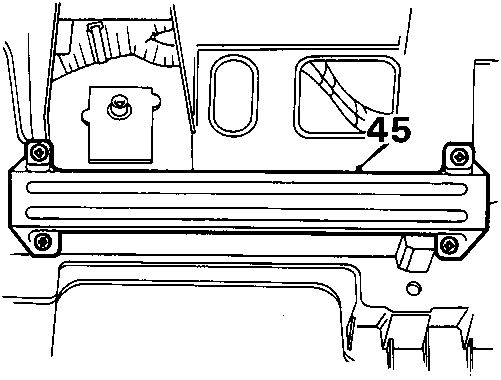

Diagram showing location of screws and fascia reinforcement bar 45
  1. Remove 4 screws and fascia reinforcement bar.

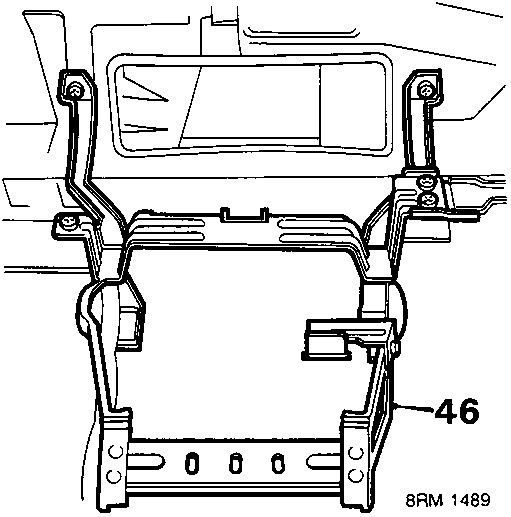

Diagram showing location of screws and fascia centre support bracket 46
  1. Remove 7 screws and fascia centre support bracket.

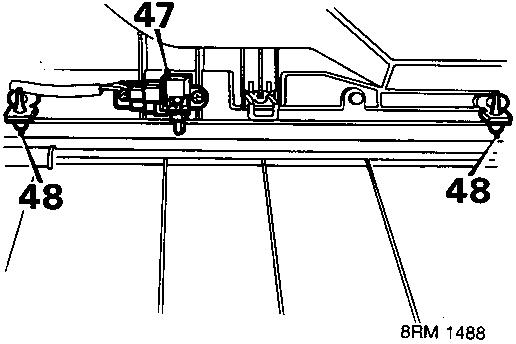

Diagram showing location of screws 48 and glovebox lamp 47
  1. Remove 2 screws and glovebox lamp.
  2. Remove 2 screws and 2 glovebox stops.
