Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Luggage compartment side trim – tourer (page 2 of 2)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Interior trim components
BodyLuggage compartment side trim – tourer · page 2 of 2

Service Repair No. 76.64.15

Remove

  1. Open sun roof.
  2. Disconnect battery earth lead.

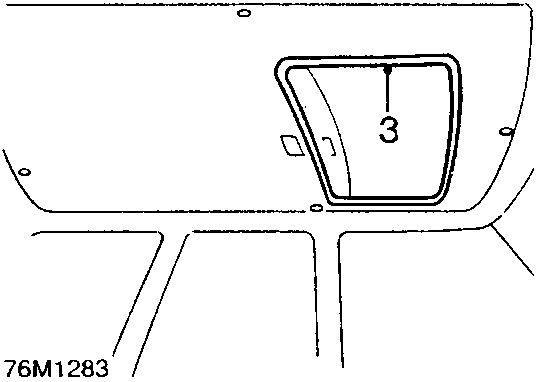

Diagram showing the sun roof aperture seal finisher on the headlining
  1. Remove sun roof aperture seal finisher.

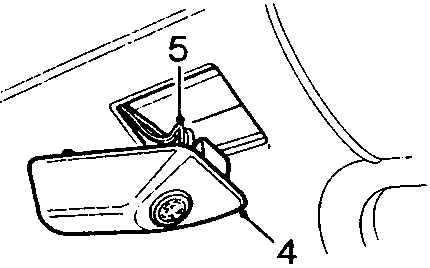

Diagram showing the alarm ultrasonic module and multiplug connection on the headlining
  1. Release alarm ultrasonic module from headlining.
  2. Disconnect multiplug and remove module.

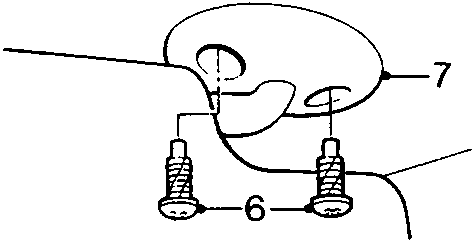

Diagram showing the sun visor attachment points with screws and clips to the roof
  1. Release sun visors from clips. Remove 2 screws securing each sun visor to roof.
  2. Remove 2 sun visors.

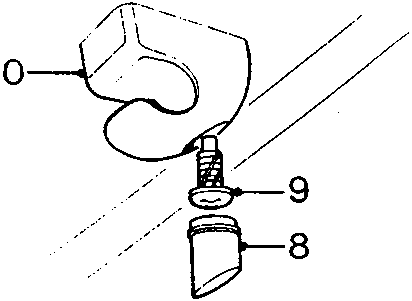

Diagram showing the sun visor clip, blanking plug, and securing screw
  1. Remove blanking plug from each sun visor clip.
  2. Remove screw securing each clip.
  3. Remove 2 sun visor clips.

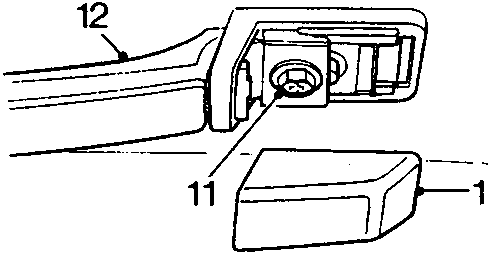

Diagram showing the grab handle cover, securing screws, and handle itself
  1. Remove 2 covers and 2 screws securing each grab handle.
  2. Remove 3 grab handles.

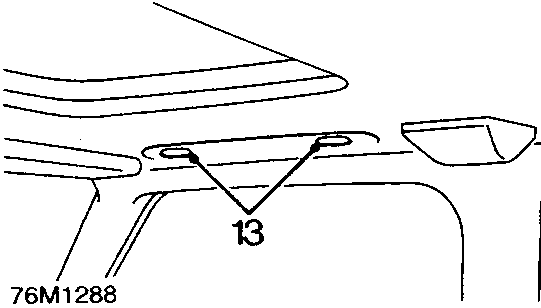

Diagram showing the plug locations on the drivers side of the headlining near the interior lamp
  1. Remove 2 plugs in drivers side of headlining.
  2. Remove interior lamp, see ELECTRICAL – Repairs.
  3. Remove headrests from front seats.
