BodyBottom hose to L.H. ram

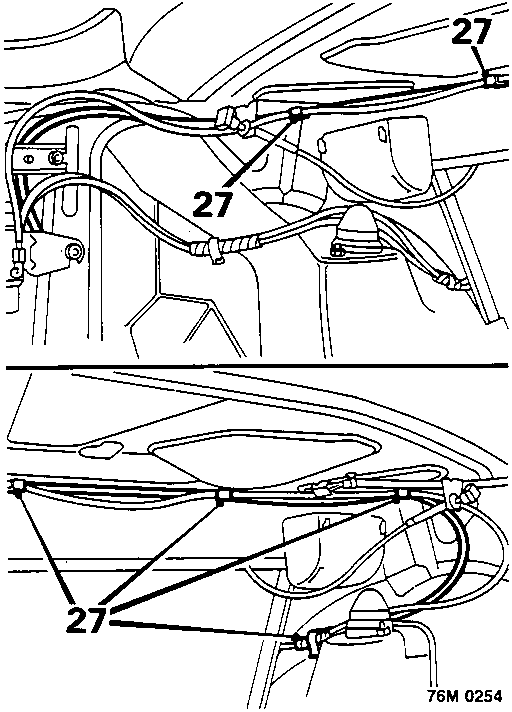

Diagram showing release of hose from spiral tie and plastic clips beneath rear shelf, with callout numbers 27 pointing to various fasteners and ties.
  1. Release hose from spiral tie adjacent to pump, 5 plastic clips beneath rear shelf, spiral hose tie at R.H. suspension turret, body tag on wheel arch and self adhesive tape adjacent to ram.
  2. Remove rear quarter trim panel, see Rear quarter trim panel – cabriolet.
  3. Place a cloth beneath ram union to catch any spillage.

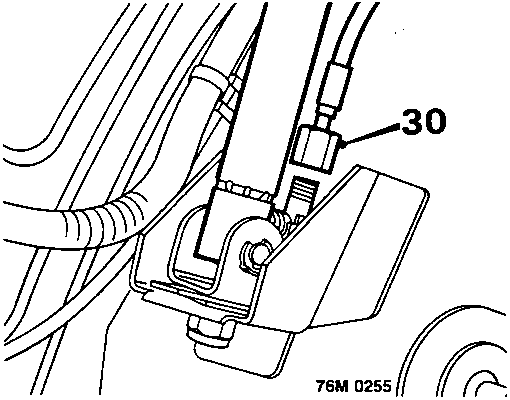

Diagram showing disconnecting the ram union and removing the hose, with callout number 30 pointing to the union fitting.
  1. Disconnect ram union and remove hose from vehicle.

Bottom hose to L.H. ram

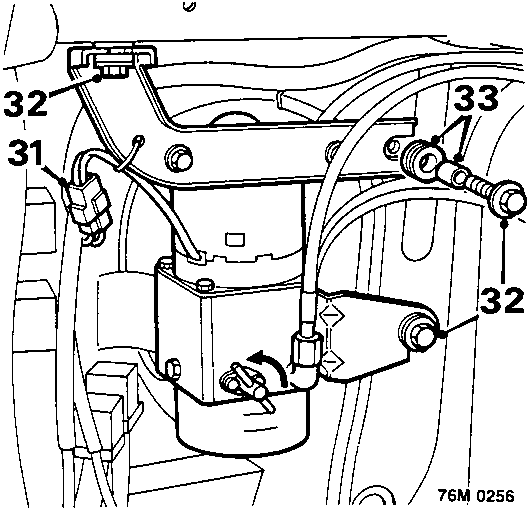

Diagram showing the hood motor pump assembly, with callout numbers 31 pointing to the multiplug, 32 pointing to fixing bolts, and 33 pointing to rubber bushes and steel inserts.
  1. Disconnect multiplug from hood motor fly – lead.
  2. Remove pump fixing bolts and place pump assembly in drip tray.
  3. Collect rubber bushes and steel inserts from pump mounting brackets.

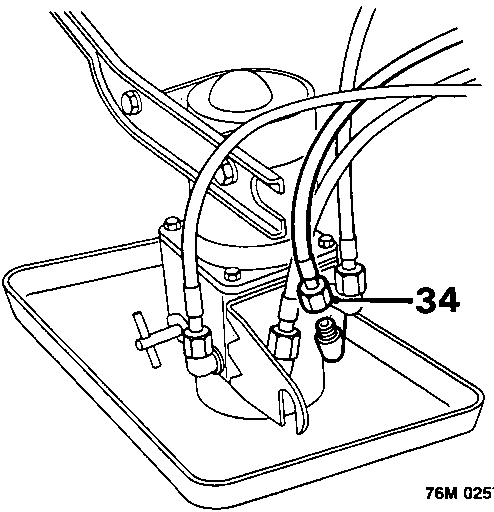

Diagram showing the pump assembly upright in a drip tray, with callout number 34 pointing to the hose being disconnected from the pump.
  1. Keeping pump assembly upright, disconnect hose from pump and plug union and hose.

CAUTION: Place end of hose in drip tray to catch any seepage.
