Hood › Refit
BodyRefit

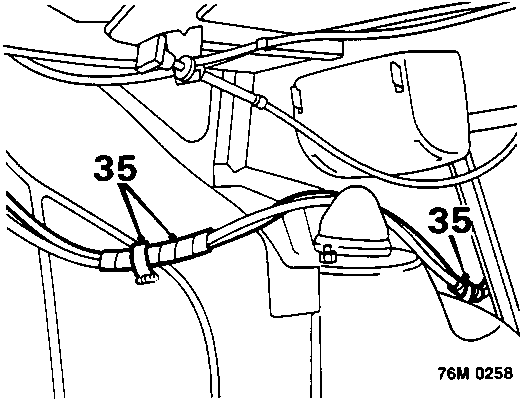

Diagram showing release of hose from spiral ties and body tags, with callout number 35 pointing to the clips.
  1. Release hose from spiral ties, body tags and self – adhesive tape.
  2. Remove rear quarter trim panel, see Rear quarter trim panel – Cabriolet.

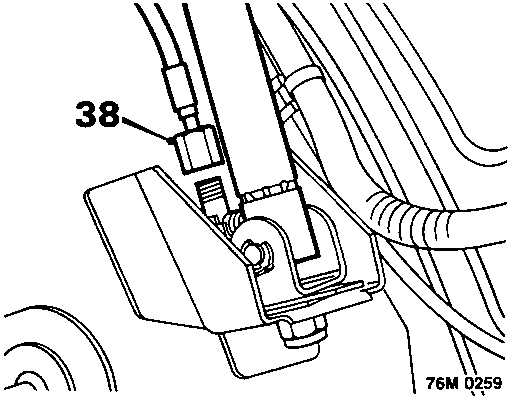

Diagram showing disconnecting ram union, with callout number 38 pointing to the connection point.
  1. Place a cloth beneath ram union to catch any spillage.
  2. Disconnect ram union and remove hose from vehicle.

Refit

Bottom hose to L.H. ram

  1. Connect new hose to ram and route hose around luggage space.
  2. Secure hoses together, approximately 150mm from ram, using self adhesive tape.
  3. Secure hoses to wheelarch with steel body tags.
  4. Secure hoses together over suspension turret with spiral tie.
  5. Fit rear quarter trim panel, see Rear quarter trim panel – cabriolet.
  6. Ensuring that pump is kept upright, correctly position and secure hydraulic hose to pump.

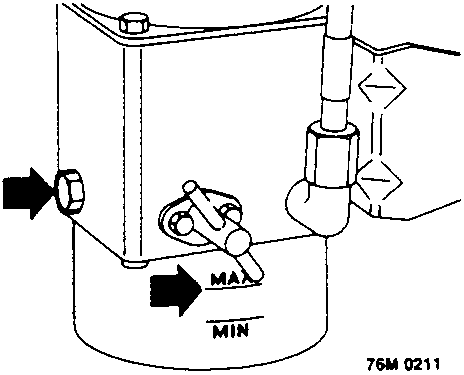

Diagram showing fluid level in reservoir with MAX and MIN marks, and a hand checking the level.
  1. Check fluid level in reservoir. If level is low, remove filler plug and top up to 'MAX' mark using Hydraulic Oil, see INFORMATION – CAPACITIES, FLUIDS AND LUBRICANTS. and refit filler plug.
  2. Fit rubber bushes and steel inserts to pump mountings.
  3. Position pump and fit bolts.
  4. Secure hoses together, adjacent to pump, using spiral tie.
  5. Connect multiplug to pump fly – lead.

Bottom hose to R.H. ram

  1. Connect new hose to ram and route hose around luggage space.
  2. Secure hoses together, approximately 150mm from ram, using self adhesive tape.
  3. Secure hoses to wheelarch with steel body tag.
  4. Secure hoses together over suspension turret with spiral tie.
  5. Fit rear quarter trim panel.
  6. Secure hose to plastic clips on underside of rear shelf.
  7. Fit R.H. side valance carpet.
  8. Ensuring that pump is kept upright, correctly position and secure hydraulic hose to pump.

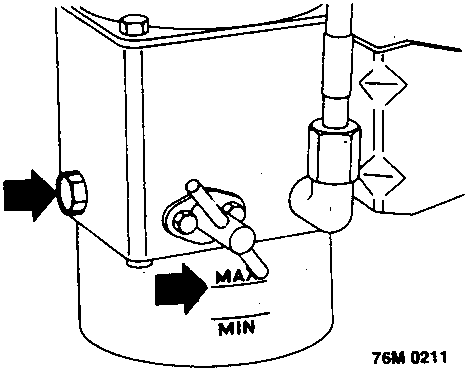

Diagram showing fluid level in reservoir with MAX and MIN marks, identical to F3.
  1. Check fluid level in reservoir. If level is low, remove filler plug and top up to 'MAX' mark using Hydraulic Oil, see INFORMATION – CAPACITIES, FLUIDS AND LUBRICANTS. and refit filler plug.
  2. Fit rubber bushes and steel inserts to pump mountings.
  3. Position pump and fit bolts.
