'd' post seal – cabriolet

'D' POST SEAL – CABRIOLET

Service Repair No. 76.61.36

Remove

1. Lower hood partially until forward half is positioned vertically.

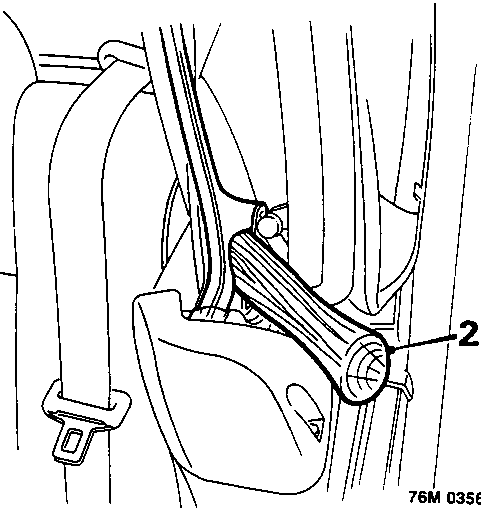

2. Power hood: Place chocks in both sides of hood mechanism.
3. Lower appropriate rear window.

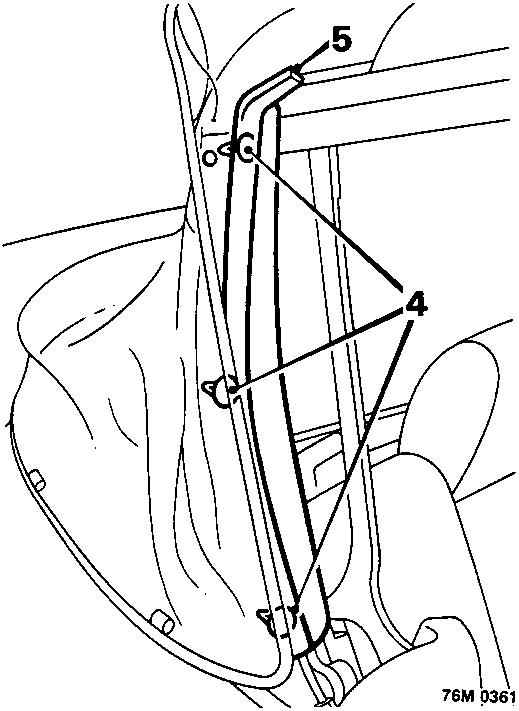

4. Release 3 trim studs securing 'D' post seal to bracket.
5. Remove seal complete with trim studs.

Refit

1. Fit seal, complete with trim studs, to 'D' post bracket.
2. Engage trim studs to bracket.
3. Lower rear windows, one turn of handle.
4. Power hood: Remove chocks from hood mechanism.
5. Raise and secure hood. Close rear windows.

BACKLIGHT ZIP – CABRIOLET

Service Repair No.
Backlight zip – upper 76.61.19

The following procedure details replacement of the upper half of the backlight zip fastener, which is attached to the hood frame. If the lower half requires replacement, it is recommended that the work is entrusted to a trim specialist.

Remove

1. Release hood handles.

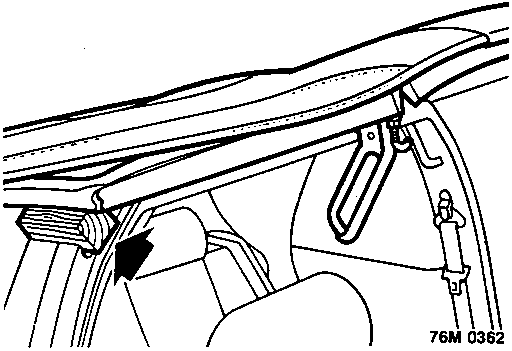

2. Lift hood slightly to allow a 50 mm deep support block to be placed between top of each 'B' post and underside of hood frame.

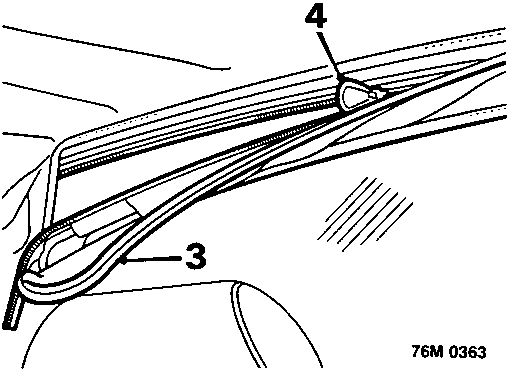

3. Peel Velcro away from top of backlight to reveal zip fastener.
4. Unfasten zip and lay backlight on rear shelf.
5. Lay protective sheet over backlight, luggage compartment lid and rear seats.
