Service Repair No. 76.61.60

Remove

1. No power operation, turn hood pump isolator valve 4 turns anti – clockwise
2. Lower hood.
3. Remove luggage compartment carpet.

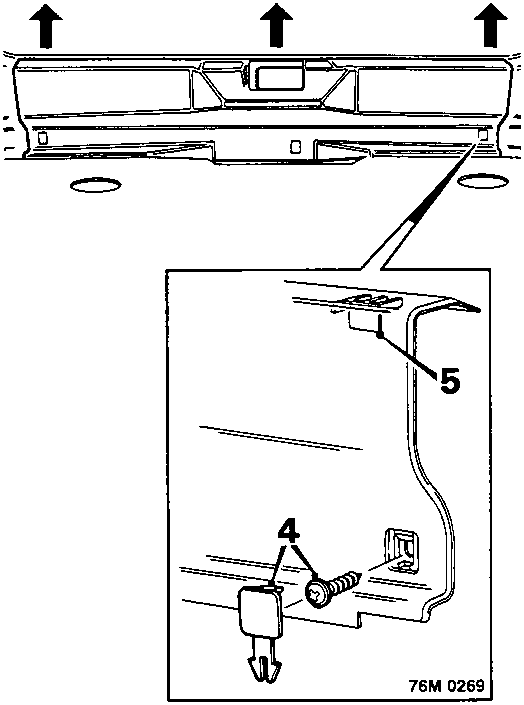

4. Remove 3 screw covers and screws from rear panel moulding.
5. Prise moulding clips from panel and remove rear panel moulding.

CAUTION: Take care not to damage painted surface beneath moulding.

6. Release L.H. rear seat squab catch and fold seat forward.

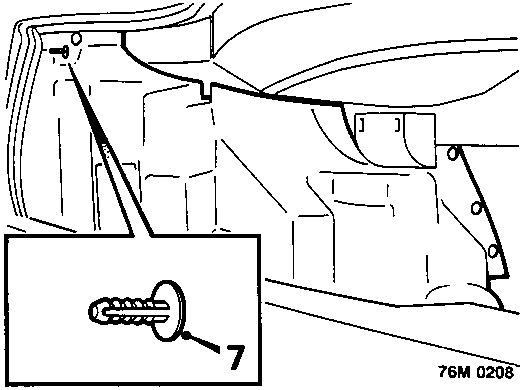

7. Remove 5 fixing studs from L.H. side valance carpet and remove carpet.

8. Turn hood pump isolator valve at least 4 complete turns anti – clockwise to isolate hood rams.

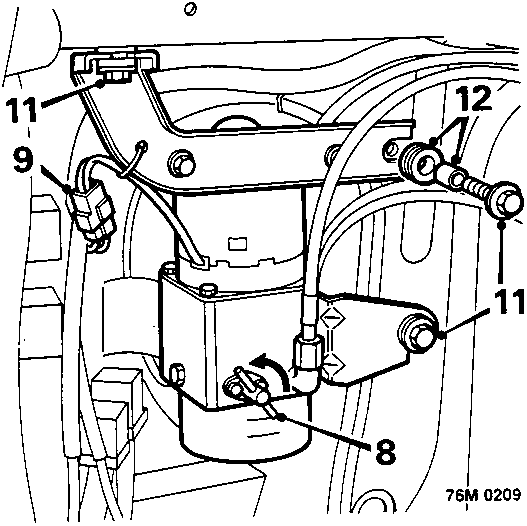

9. Disconnect multiplug from hood motor fly – lead.
10. Position a clean drip tray in luggage compartment.

Note: Providing that pump is kept upright, very little spillage will occur when hoses are disconnected.

11. Remove pump fixing bolts and place pump assembly in drip tray.
12. Collect rubber bushes and steel spacers from pump mounting brackets.

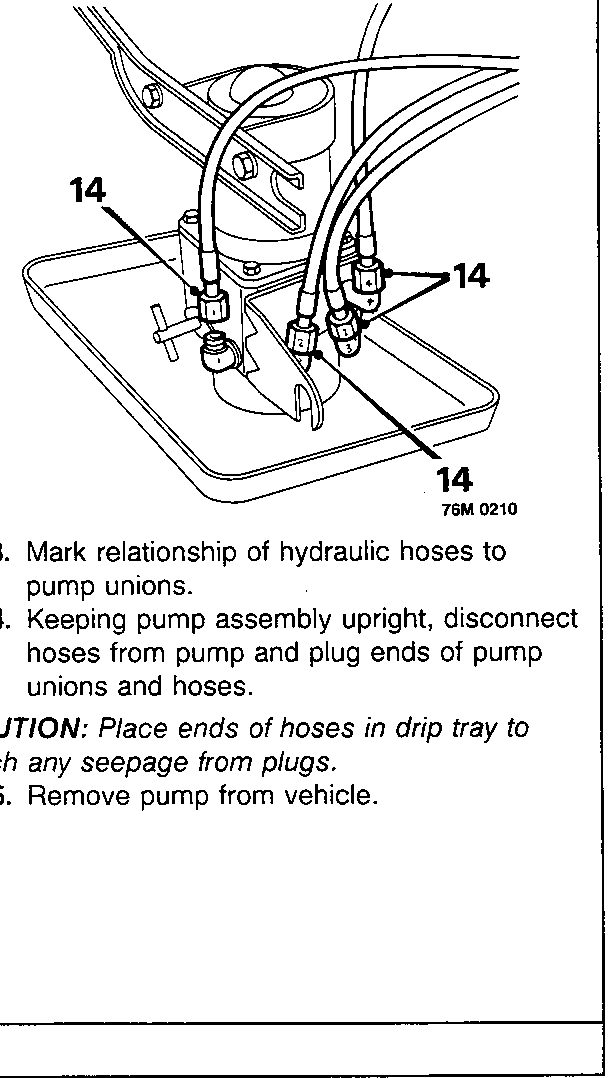

13. Mark relationship of hydraulic hoses to pump unions.
14. Keeping pump assembly upright, disconnect hoses from pump and plug ends of pump unions and hoses.

CAUTION: Place ends of hoses in drip tray to catch any seepage from plugs.

15. Remove pump from vehicle.
