Hood › Top hose to L.H. ram
BodyTop hose to L.H. ram
  1. Remove R.H. side valence carpet.

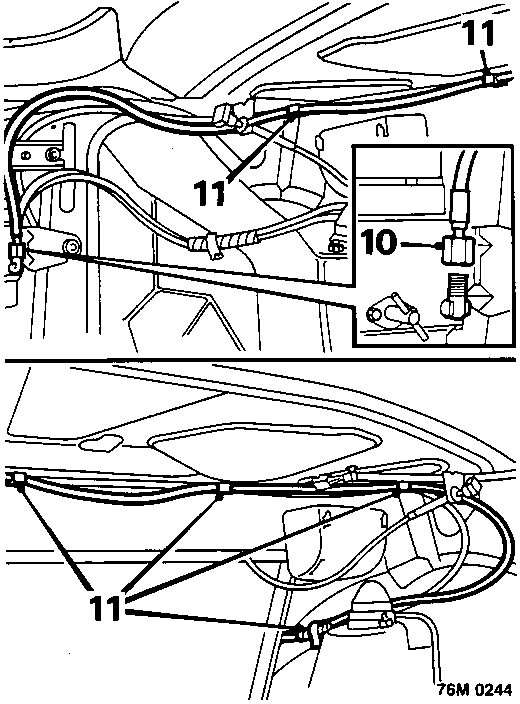

Diagram showing release of hose from spiral tie and plastic clips beneath rear shelf, with callout numbers 10 and 11.
  1. Disconnect hose from pump and plug union and hose.
  2. Release hose from spiral tie adjacent to pump, 5 plastic clips beneath rear shelf, spiral hose tie at R.H. suspension turret, body tag on wheel arch and self adhesive tape adjacent to ram.

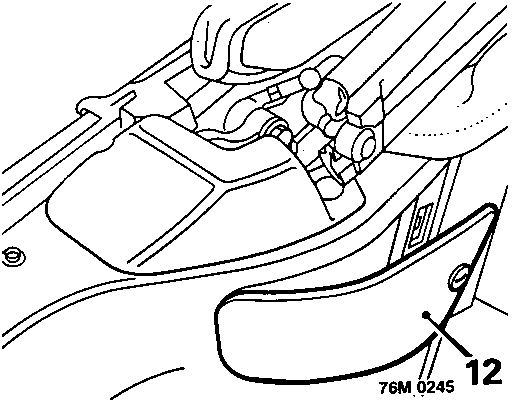

Diagram showing release of turnbuckle from hood ram inspection cover, with callout number 12.
  1. Release turnbuckle from hood ram inspection cover and remove cover.
  2. Place a cloth beneath ram union to catch any spillage.

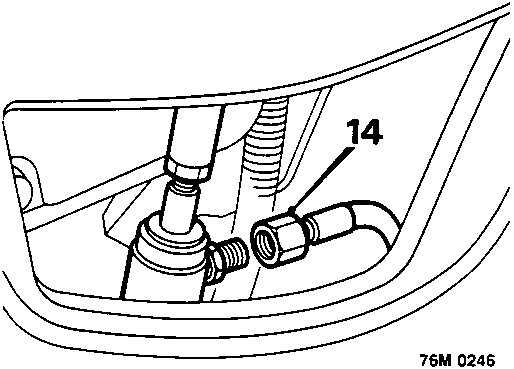

Diagram showing disconnecting ram union and removing hose from vehicle, with callout number 14.
  1. Disconnect ram union and remove hose from vehicle.

Top hose to L.H. ram

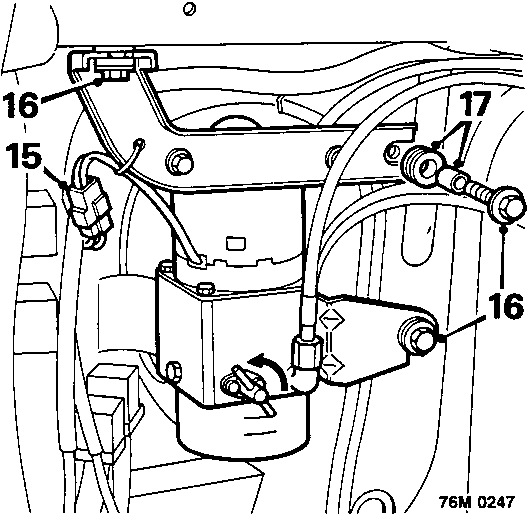

Diagram showing disconnecting multiplug from hood motor fly-lead, removing pump fixing bolts, and collecting rubber bushes and steel inserts, with callout numbers 15, 16, and 17.
  1. Disconnect multiplug from hood motor fly – lead.
  2. Remove pump fixing bolts and place pump assembly in drip tray.
  3. Collect rubber bushes and steel inserts from pump mounting brackets.

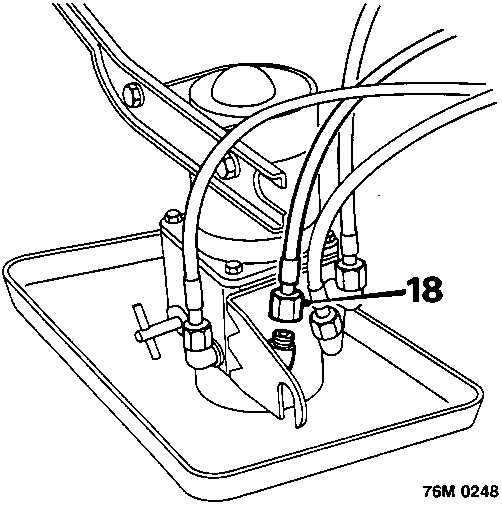

Diagram showing keeping pump assembly upright and disconnecting hose from pump and plug union and hose, with callout number 18.
  1. Keeping pump assembly upright, disconnect hose from pump and plug union and hose.

CAUTION: Place end of hose in drip tray to catch any seepage.
