BodyBottom hose to R.H. ram

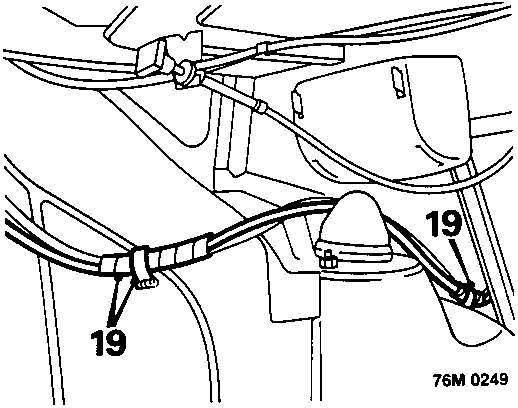

Diagram showing release of hose from spiral ties, body tags and self adhesive tape on the hood mechanism
  1. Release hose from spiral ties, body tags and self adhesive tape.

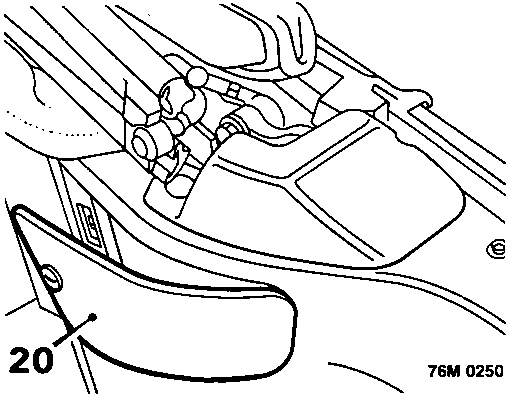

Diagram showing release of turn buckle from hood ram inspection cover and removal of cover
  1. Release turn buckle from hood ram inspection cover and remove cover.
  2. Place a cloth beneath ram union to catch any spillage.

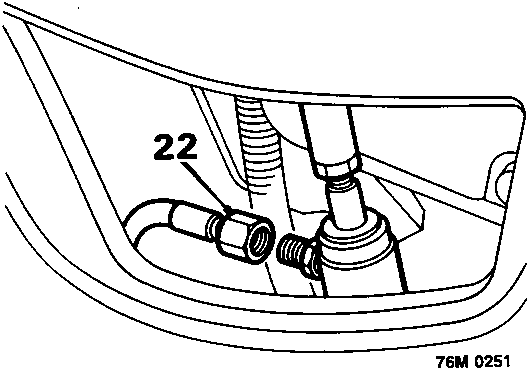

Diagram showing disconnecting ram union and removing hose from vehicle
  1. Disconnect ram union and remove hose from vehicle.

Bottom hose to R.H. ram

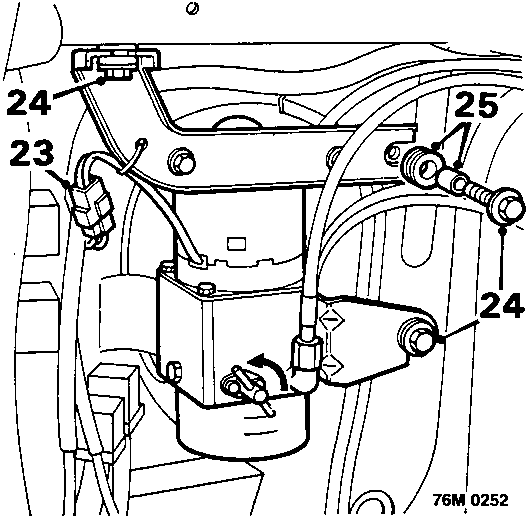

Diagram showing disconnecting multiplug from hood motor fly-lead, removing pump fixing bolts, and collecting rubber bushes and steel inserts from pump mounting brackets
  1. Disconnect multiplug from hood motor fly – lead.
  2. Remove pump fixing bolts and place pump assembly in drip tray.
  3. Collect rubber bushes and steel inserts from pump mounting brackets.

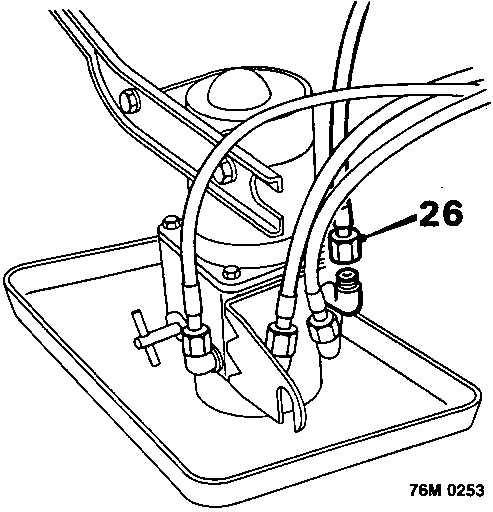

Diagram showing keeping pump assembly upright while disconnecting hose from pump and plugging union and hose
  1. Keeping pump assembly upright, disconnect hose from pump and plug union and hose.

CAUTION: Place end of hose in drip tray to catch any seepage.
