Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Manual hood

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Hood › Manual hood
BodyManual hood · page 1 of 2

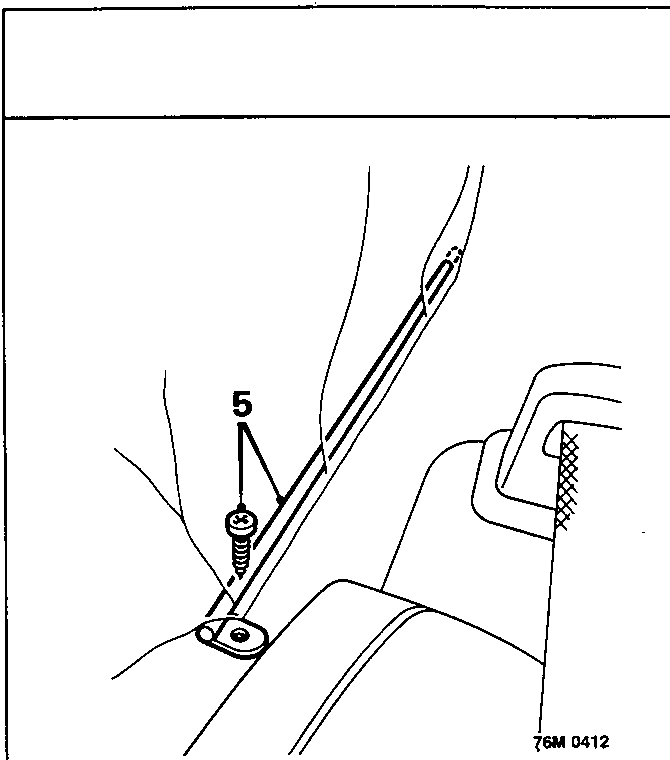

Diagram showing headlining tension rod screws at rear shelf
  1. Remove headlining tension rod screws, at either side of rear shelf, and remove tension rods.

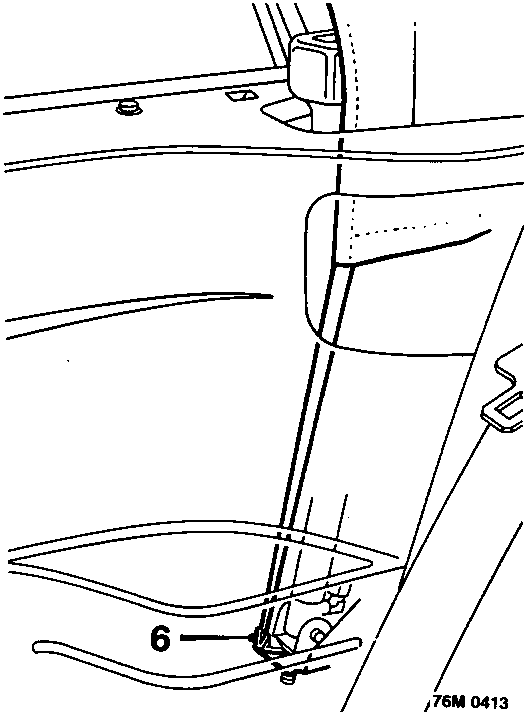

Diagram showing disengagement of headlining strap from base of hood strut
  1. Reach between hood strut and rear quarter trim panel to disengage headlining strap from base of hood strut. Remove wire clip from headlining strap.

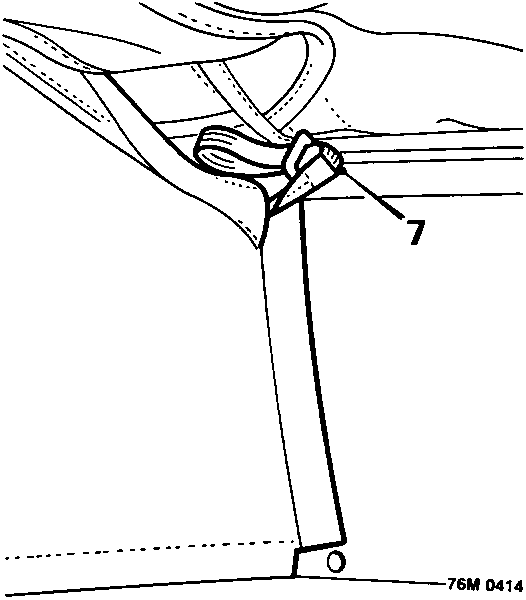

Diagram showing release of straps at rear of headlining from hooks in lower rail of backlight
  1. Release straps at rear of headlining from hooks in lower rail of backlight.

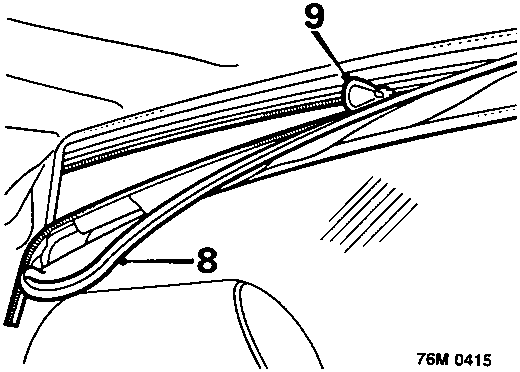

Diagram showing Velcro and zip fastener on top of backlight
  1. Peel Velcro away from top of backlight to reveal zip fastener.
  2. Unfasten zip and lay backlight in rear shelf.

Manual hood

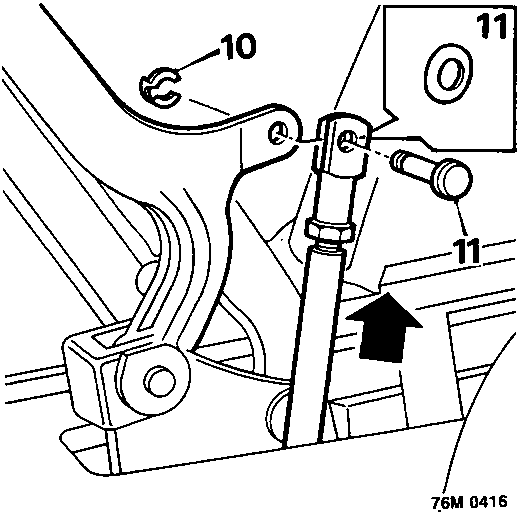

Diagram showing removal of retaining clips and clevis pins from hood strut trunnions
  1. Remove retaining clips from clevis pins in hood strut trunnions.
  2. Withdraw clevis pins and collect Belville washers from trunnions.
