BodyManual hood · page 2 of 2

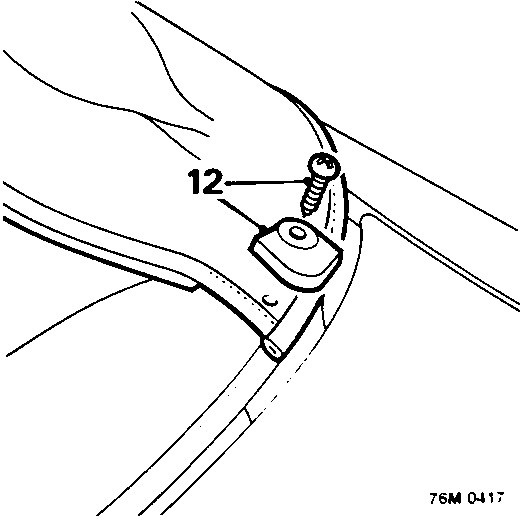

Diagram showing rear quarter corner finisher secured by screw (12) and bracket (76M 0417)
  1. Remove screws securing rear quarter corner finishers and remove finishers.

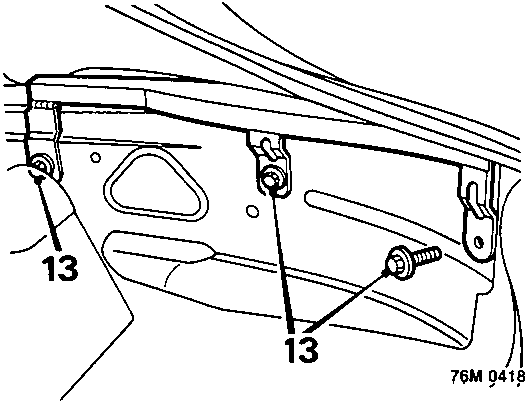

Diagram showing hood rear quarter bracket secured by screws (13) (76M 0418)
  1. Remove 3 screws securing each hood rear quarter bracket.
  2. Fold hood rear quarters up and lay them carefully on top of hood.
  3. Lay protective sheet over backlight, luggage compartment lid and seating.

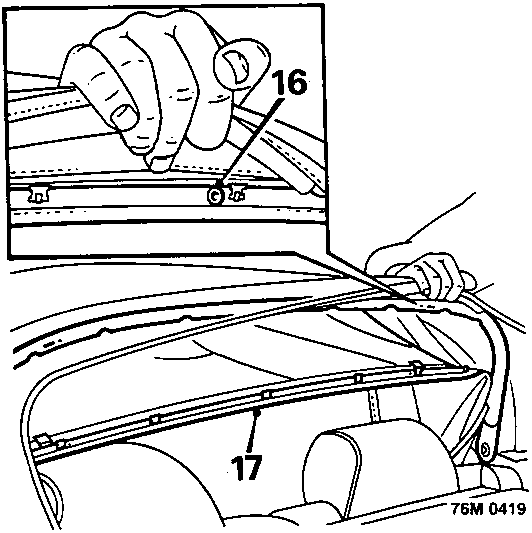

Diagram showing pop rivets (16) securing headlining retainer to hood frame and release of headlining retainer rail (17) (76M 0419)
  1. Drill out 2 pop rivets securing rear headlining retainer to hood frame. Ensure outer covering is held away from drill chuck.
  2. Release headlining retainer rail from hood frame.

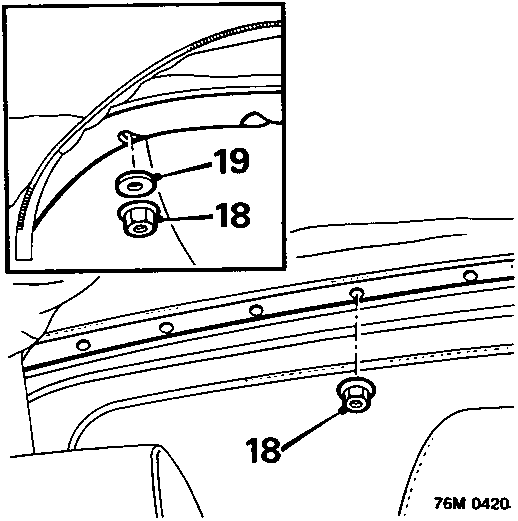

Diagram showing nuts (18) securing clamp rail and washers (19) on outboard clamp rail studs (76M 0420)
  1. Remove 9 nuts securing hood outer covering clamp rail.
  2. Collect 2 washers from outboard clamp rail studs.
  3. Release clamp rail from hood frame.
  4. Remove 2 screws securing each 'D' post bracket and collect brass washers.
  5. Release 'D' post brackets from hood frame and collect washers.

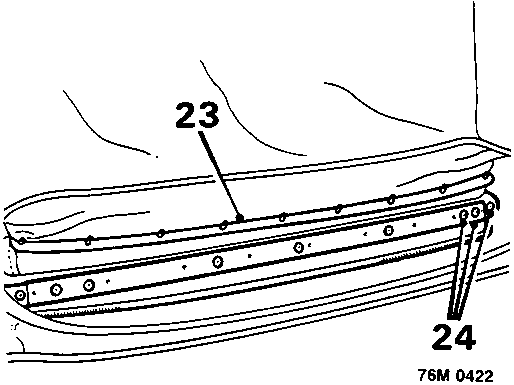

Diagram showing pop rivets (23) securing backlight zip and release of hood interlayer (24) (76M 0422)
  1. Drill out 9 pop rivets securing backlight zip to hood frame and remove zip.
  2. Release hood interlayer from adhesive on hood frame taking care not to rip interlayer fabric.

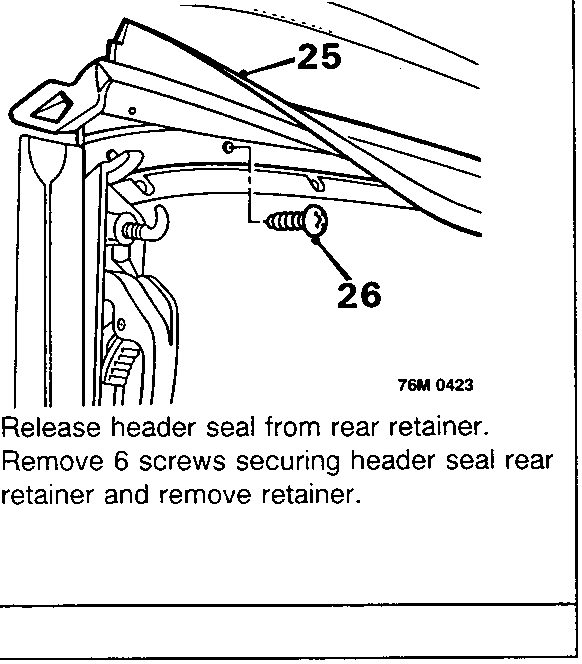

Diagram showing header seal (25) and screws (26) securing header seal rear retainer (76M 0423)
  1. Release header seal from rear retainer.
  2. Remove 6 screws securing header seal rear retainer and remove retainer.
