Battery Tray Replacement (without Start/Stop System)

Removal Procedure

1. Open the hood.
2. Remove the battery. Refer to Battery Replacement .
3. Unclip all wiring harness from the battery tray.
4. Unclip the engine control module bracket from the battery tray.
5. If equipped, unclip the radiator surge tank engine hose from the battery tray.

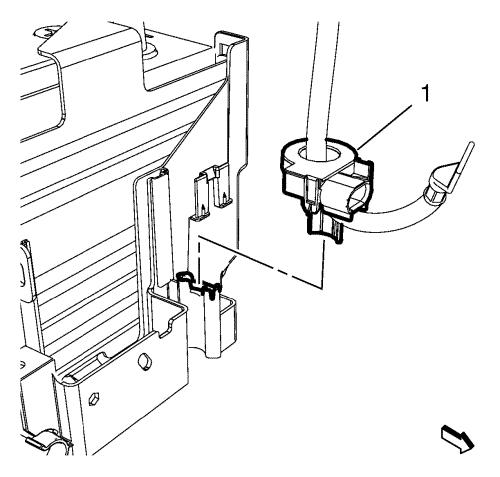

           2694013



6. Unclip the battery current sensor (1) from the battery tray.

           2027666



7. Remove the 3 battery tray bolts (1).
8. Remove the battery tray (2).

Installation Procedure


           2027666



1. Install the battery tray (2).

Caution: Refer to Fastener Caution .
2. Install the 3 battery tray bolts (1) and tighten to 15 N·m (11 lb ft) .

           2694013



3. Clip in the battery current sensor (1) to the battery tray.
4. If equipped, clip in the radiator surge tank engine hose to the battery tray.
5. Install battery. Refer to Battery Replacement .
6. Clip in all wiring harness at the battery tray.
7. Clip in the engine control module bracket to the battery tray.
8. Close the hood.
