Starter Replacement - 1.6L LGE and LLU (Engine Electrical)

Make

Vauxhall

Model

Astra J

Section

Engine Electrical › Repair Instructions › Starter Replacement - 1.6L LGE and LLU

EngineStarter Replacement - 1.6L LGE and LLU

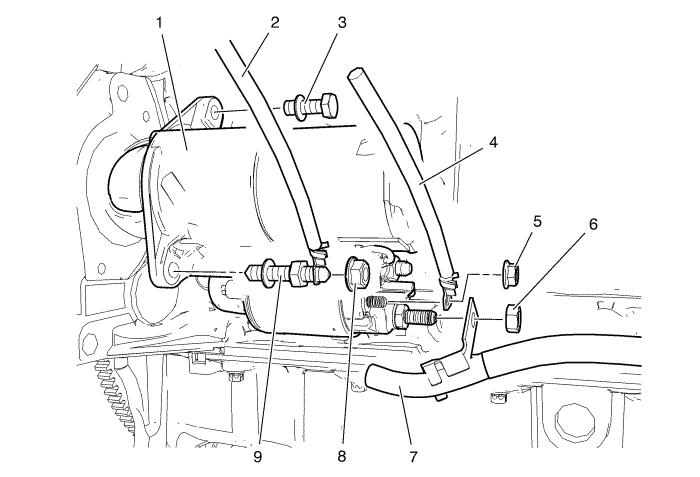

Starter Replacement (1.6L LGE and LLU) Callout Component Name Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . 1 Starter 2 Starter Negative Cable 3 Starter Bolt Caution: Refer to Fastener Caution . Tighten 25 N·m (18 lb ft) 4 Starter Positive Cable 5 Starter Positive Cable Nut 6 Starter Positive Cable Nut Tighten 12.5 N·m (111 lb in) 7 Starter Positive Cable 8 Starter Ground Cable Nut Tighten 12.5 N·m (111 lb in) 9 Starter Stud Tighten 25 N·m (18 lb ft)
