Parking Brake, Adjust (Brakes)

Make

Vauxhall

Model

Corsa C

Section

Repair Instructions › Parking Brake, Adjust

BrakesParking Brake, Adjust

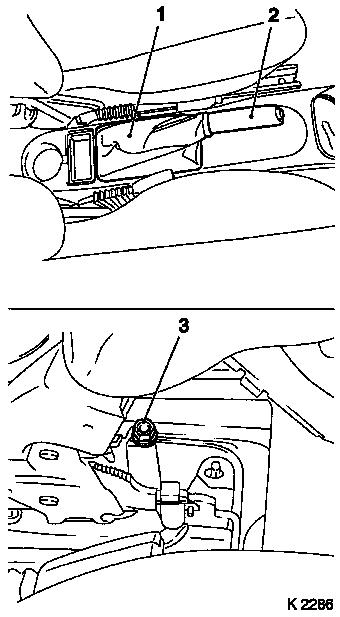

Parking Brake, Adjust Note:   Before adjusting the parking brake the drum brake must be set on vehicles with drum brake   Remove 1.   Unclip gaiter of parking brake lever (1) from centre console and pull upwards. 2.   Turn back adjusting nut (3) Note:   The adjusting nut (3) must be turned back fully •   Depress brake pedal fully at least 3 times Note:   To adjust the play on the parking brake at the brake calliper or drum hum Note:   The adjustment lever may no longer be heard to skip. 3.   Tighten parking brake lever (2) as far as the 3rd notch •   Turn adjusting nut at parking brake lever until the rear wheels can still just be turned •   Tighten parking brake/drum hub to the 7th notch Note:   The brake must now be firm. The braking effect must be equally great on both sides.   Install 4.   Clip on parking brake lever folding cover to centre console. 5.   Make short running-in journey of approx. 300 m at low speed with parking brake slightly applied.

08 Brakes
