Adjustment procedure - Gtv (page 2 of 6)

• Remove the door surround seal (see Repair Manual - Group 70 - Body - Interior trim - Door surround seal).

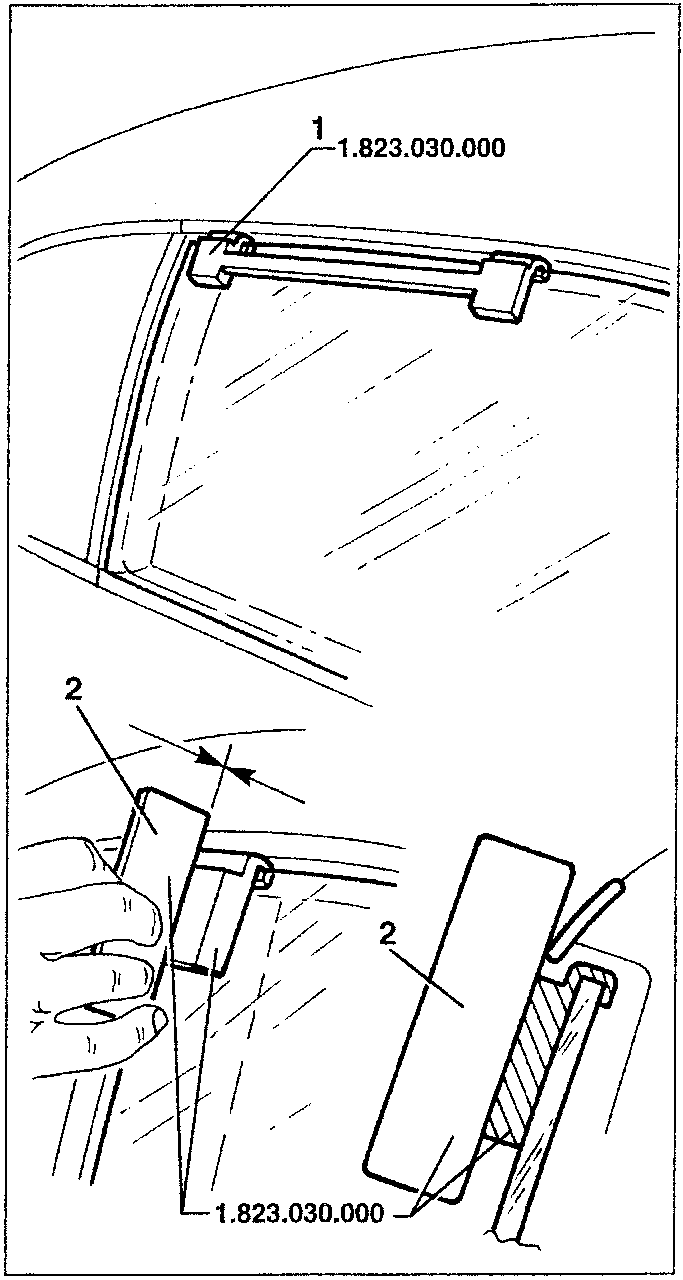

1. With the window up, open the door and position the control tool 1.823.030.000 on the upper profile of the glass.

• Close the door and keep it aligned with the side panel.

1. Using the gauge-tool, check alignment of the outer surface of the blocks and the edge of the door surround weatherstrip.

If alignment is not noted in one or both positions of measurement, work on the glass/guide coupling runners, proceeding as follows:

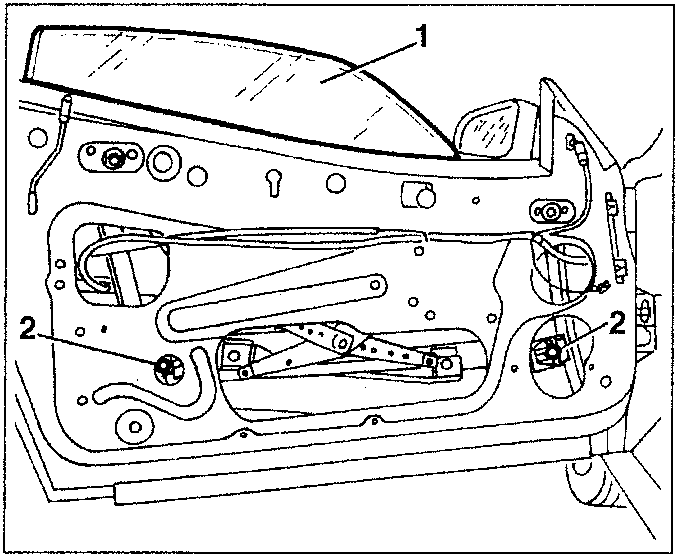

1. Move the glass to an intermediate position in order to gain access to the runner screws.
2. Slacken the screws that fasten the runners to the window.

Adjustment may be carried out also on one runner only, depending on the misalignment measured with the tools during the previous stage.

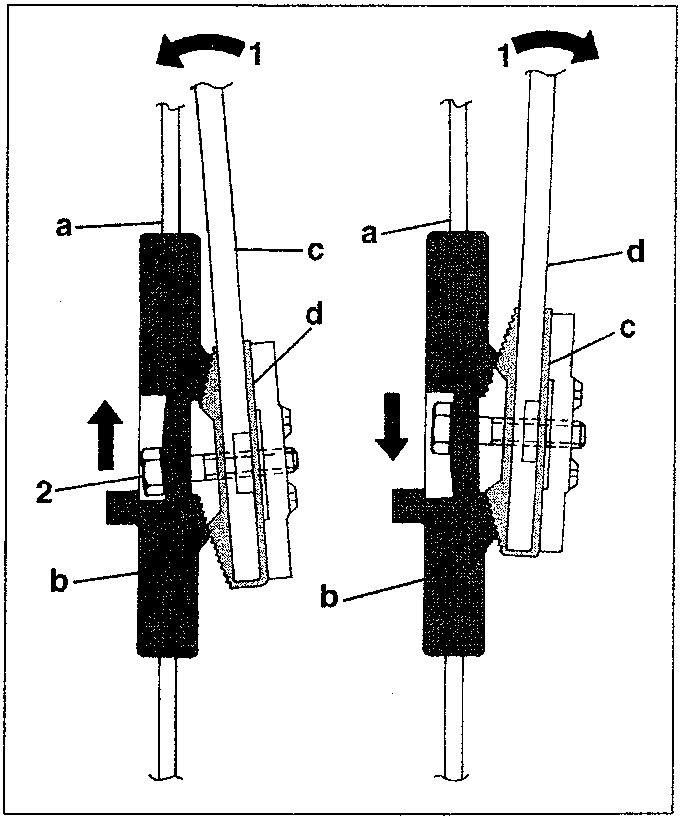

1. Change the mating position between runner and window. The two mating profiles have been designed especially to create a broad possibility if crosswise adjustment of the glass. In particular, highering the window, it will move inwards or vice versa.
2. Tighten the screw and repeat the alignment test with tools 1.823.030.000.

1. Vertical guide
2. Runner
3. Window brackets
4. Window
