Adjustment procedure - Gtv (page 4 of 6)

Also check that when rising, the window reaches the two stops contemporaneously (if not, it is noted clearly that one stop is reached before the other).

If this fails to take place, proceed as follows:

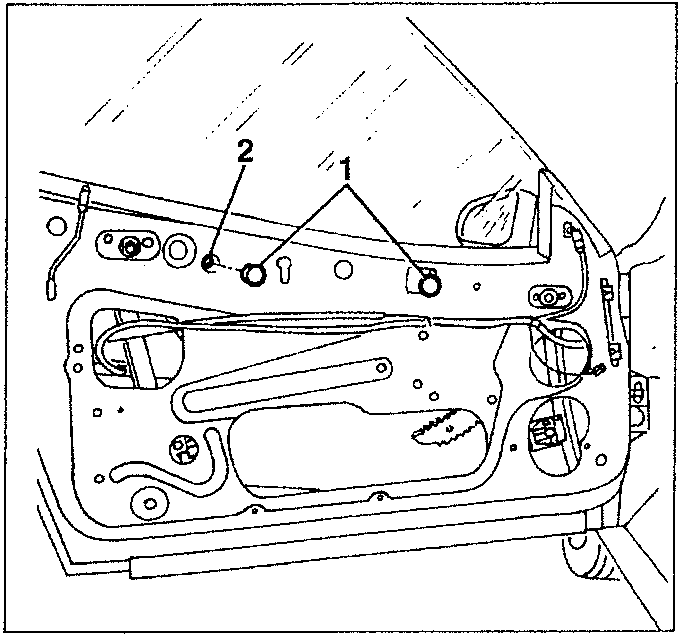

1. Keep the window in the raised position and remove the two rubber caps.
2. Slacken the two screws which fasten the glass to the window winder device, thereby allowing the window to settle.

• Tighten the screws and repeat the check.

1. Part 1
2. Part 2

After adjustment of the window stop, take the window back to the measurement position.

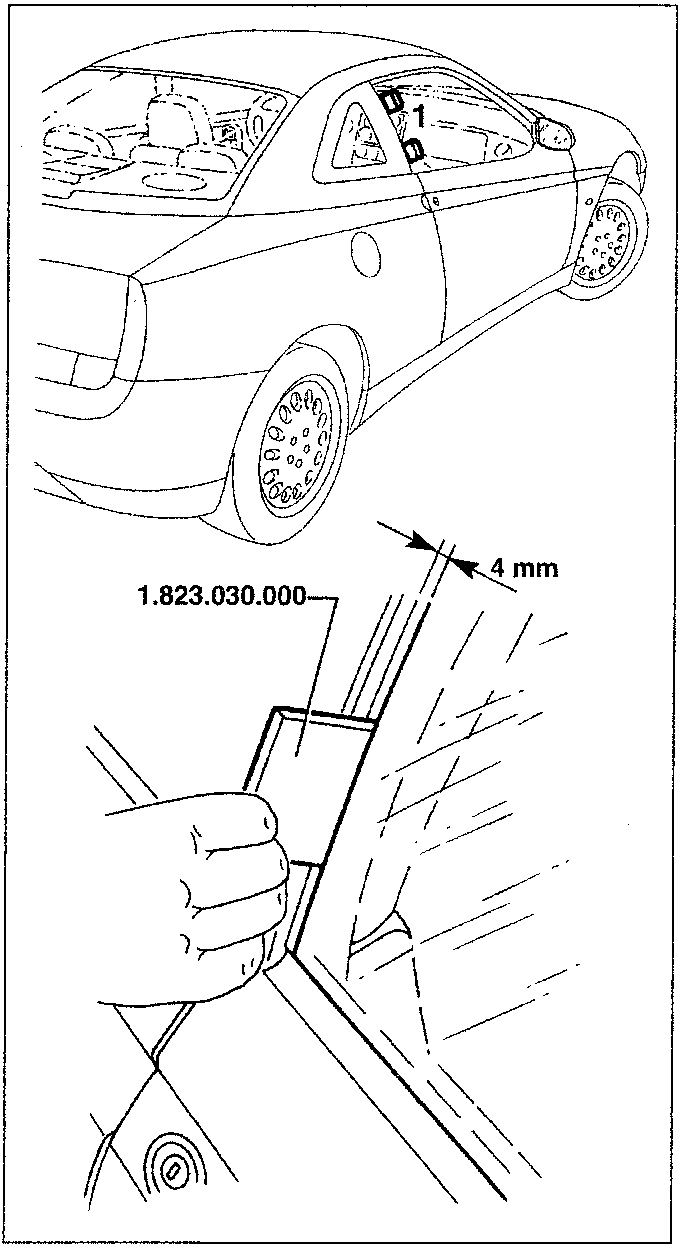

1. Using gauge-tool 1.823.030.000, check the correct distance between the rear edge of the window and the profile of the fixed glass in the upper and lower areas.
