Adjustment procedure - Gtv (page 6 of 6)

Upon completion of the adjustment procedure it is still possible to fine-tune the crossways position of the window working on the lower guide connection screws.

You are recommended to use these adjustment points only for small corrections, as it involves changing the nominal window positioning dimension.

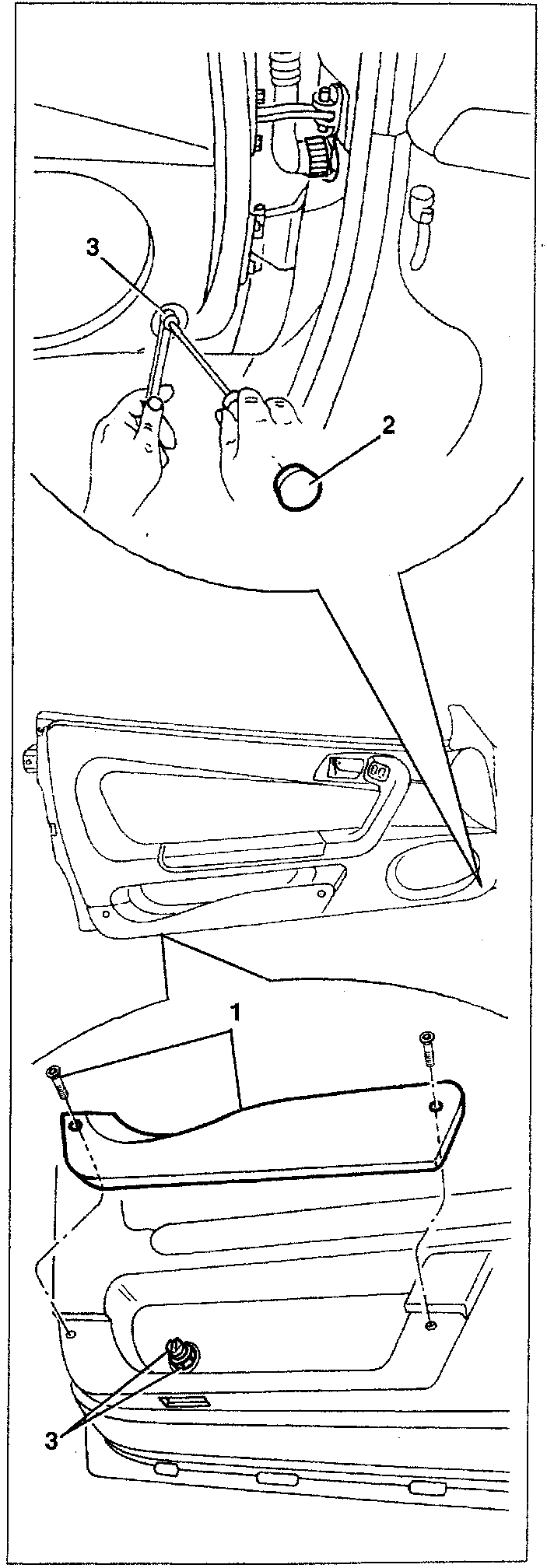

1. If the door panel is fitted, slacken the two screws and remove the utility pocket, pulling it downwards.
2. Remove the protective front cover.
3. Slacken the lock nut and work on the adjustment screw.

• Re-tighten the lock nut and repeat the checks.

1. door panel
2. lock nut
3. adjustment screw
