Adjustment procedure - Gtv (page 3 of 6)

Note: The mating profile between runner and glass is toothed. The movement of a tooth corresponds to a crossways movement of appr. 4 mm of the upper edge of the glass with the window raised.

Carry out adjustment of mating between runner and window.

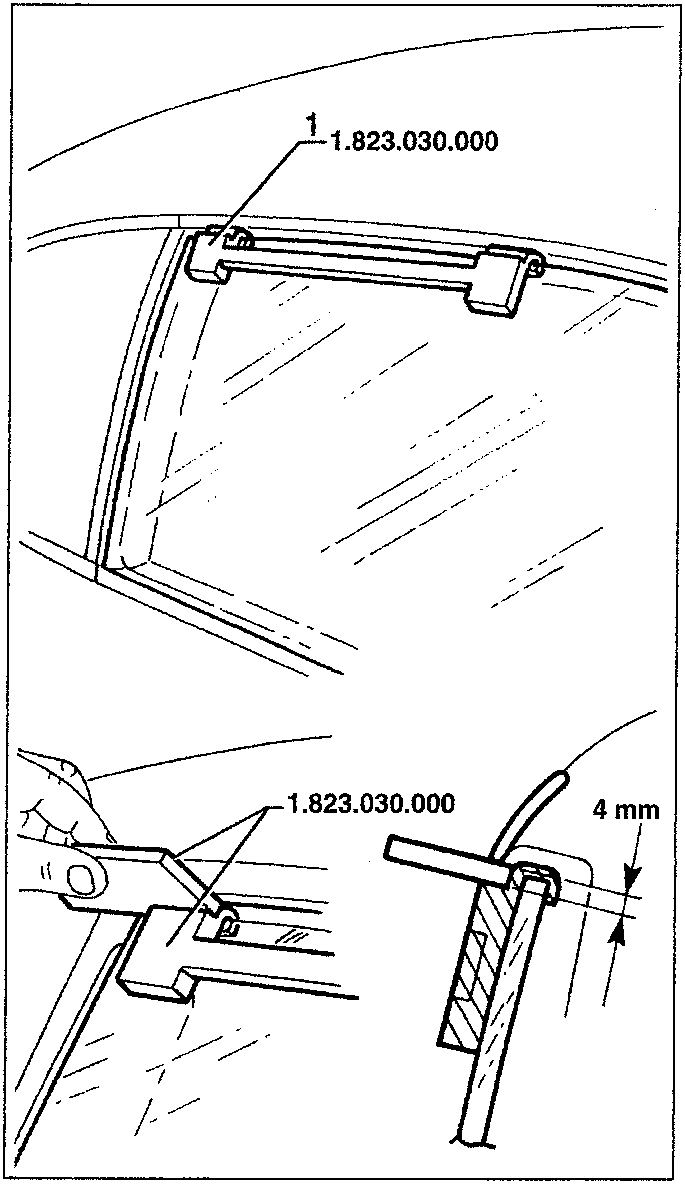

Return the window to the position of measurement with tools 1.823.030.000 (window raised).

1. Using gauge-tool 1.823.030.000, check the correct distance between the upper surface obtained on the blocks and the door surround profile.

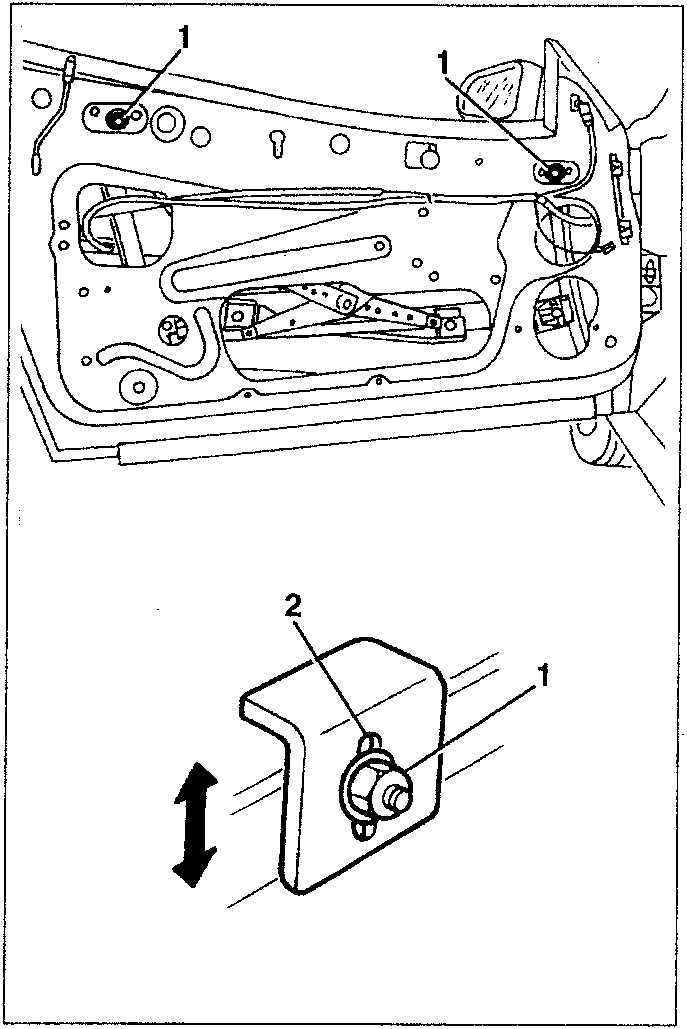

If the correct distance is not measured in the measurement position, it is necessary to act on both window stops as follows:

1. Slacken the nuts that lock the stops.
2. Raise or lower the stops according to the values measured previously with the tools.

• Tighten the nuts and repeat the measurement with the tools.
