Adjustment procedure - Gtv (page 5 of 6)

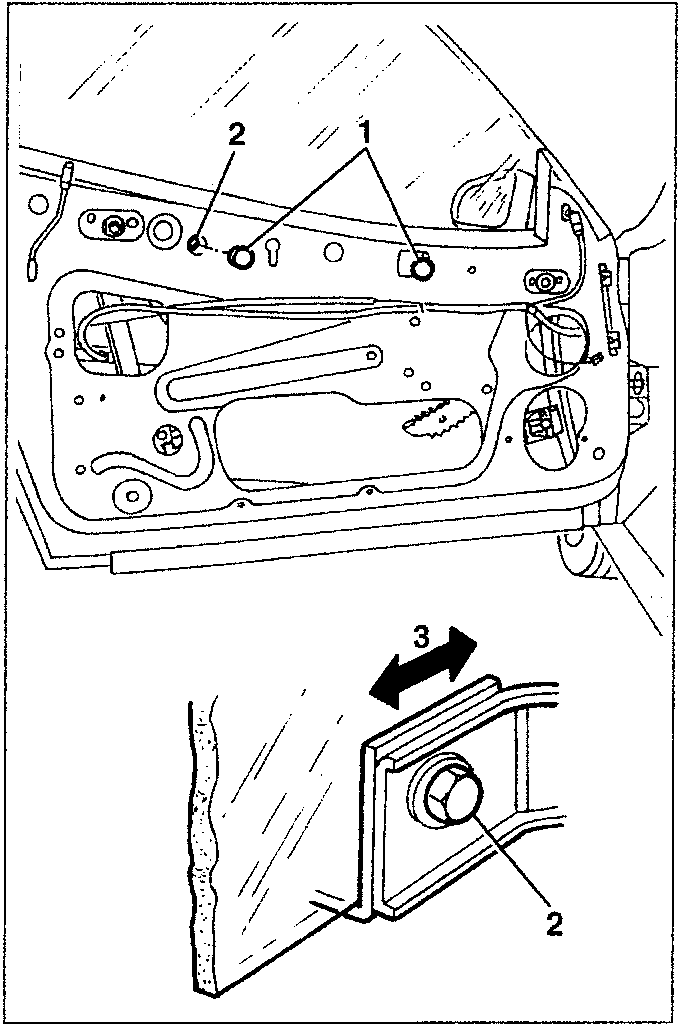

If the correct distance is not found, it is necessary to act on the fastening points of the window to the window winder device, proceeding as follows:

1. Keep the window in the raised position and remove the two rubber caps.
2. Slacken the two screws that fasten the window to the winder device.
3. Move the glass forwards or backwards depending on the measurements found with the gauge.

• Tighten the screws and repeat the measurement.

- Refit the door surround seal. - Repeat "checks and inspections C), D) and E)" from the start of the adjustment procedure. If these checks are still unsatisfactory and in particular if the window tends to stick when rising, failing to reach the correct position (initial checks-point E), it is possible to intervene on the window up/down trajectory as follows:

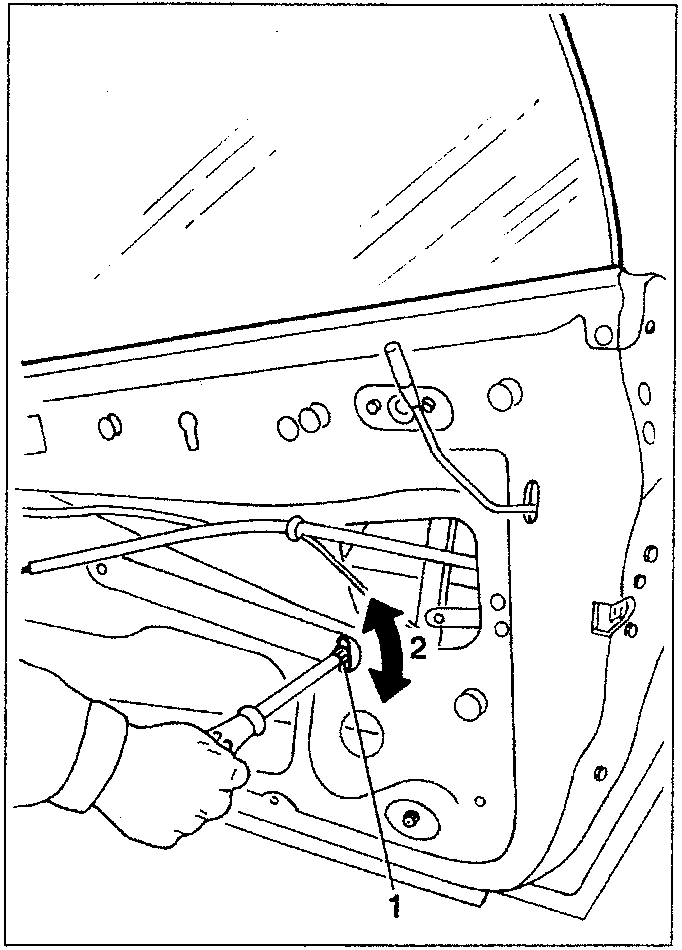

1. With the window in the raised position, slacken the adjustment screw of the window winder device.
2. Slightly lower the window so that the screw settles along the slot.

• Retighten the screw and repeat the checks.
