Aston Martin DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning (1994-1998)05 · Diagnostic system (PDU)
05 · Diagnostics

Accessing Freeze Frame Data (page 2 of 2)

Make
Aston Martin
Model
DB7 Factory Workshop Manual Volume 2: Electrics, Body and Air Conditioning
Year
1994–1998
Section
Operating instructions
Diagnostic system (PDU)Accessing Freeze Frame Data · page 2 of 2
  1. Select all PIDs (Parameter Identifications) and press the 'tick' icon.

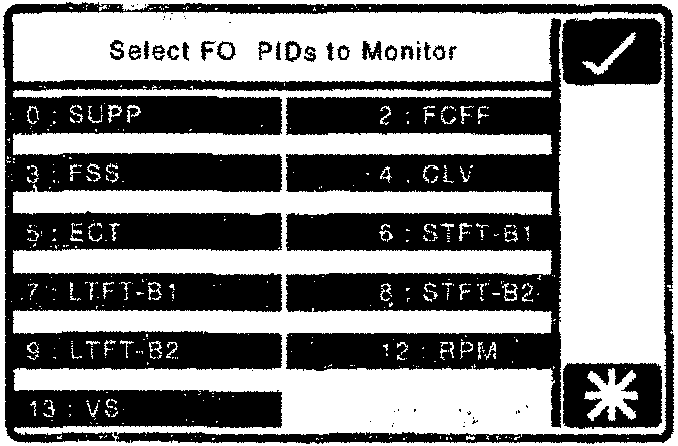

Select FO PIDs to Monitor screen with checkboxes for SUPP, FCFF, FSS, CLV, ECT, STFT-B1, STFT-B2, LTFT-B1, LTFT-B2, RPM, and VS.
  1. The freeze frame data for the selected parameters will appear (Press the down arrow to scroll to the lower part of the display).

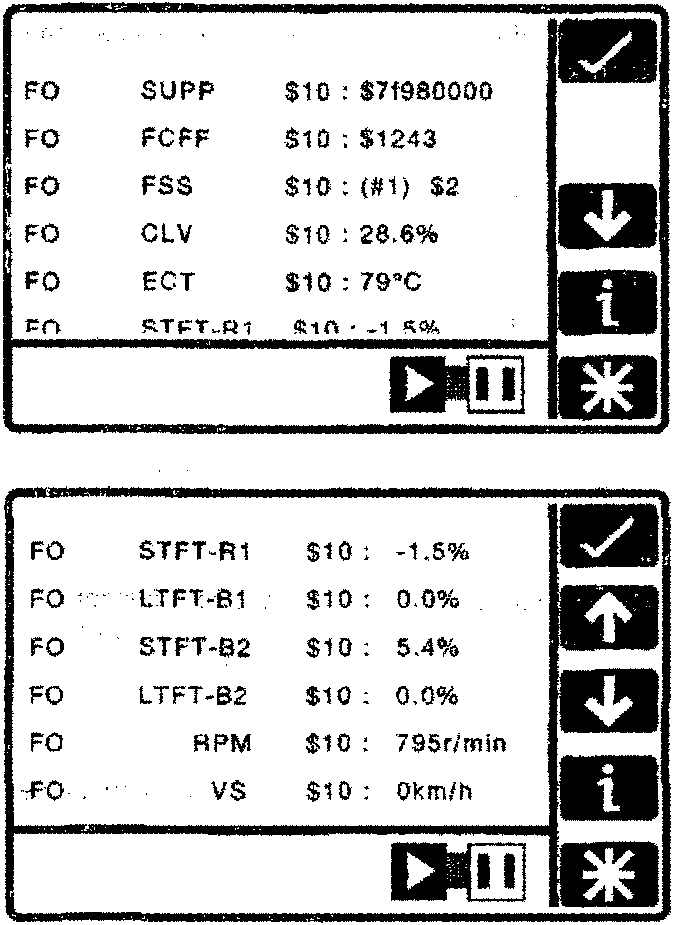

Two screens showing freeze frame data: first screen with SUPP, FCFF, FSS, CLV, ECT, STFT-R1; second screen with STFT-R1, LTFT-B1, STFT-B2, LTFT-B2, RPM, VS.
  1. Enter the freeze frame data onto the DTC Report Form together with the vehicle details and 'P' codes.
  2. Select the 'asterisk' icon and return to the main PDU menu.
