Air conditioningRefrigerant system · page 3 of 4

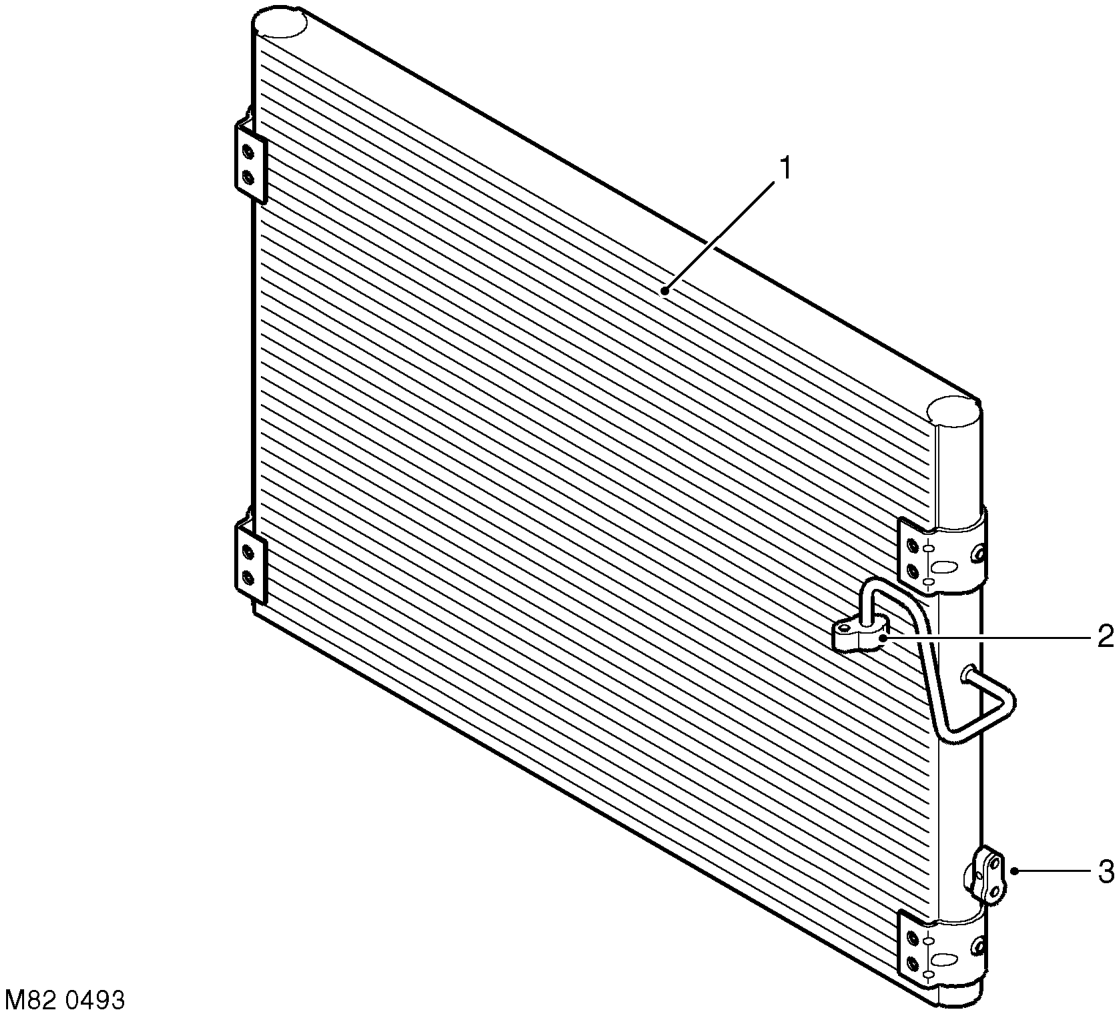

Condenser
1 Condenser matrix 2 Outlet connection 3 Inlet connection
The condenser transfers heat from the refrigerant to the surrounding air.
The condenser is installed immediately in front of the oil coolers. Rubber mounting bushes are used to mount the condenser to the chassis sidemembers and brackets on the headlamp panels.
Ambient air, passing through the condenser matrix due to ram effect and/or the cooling fan, absorbs heat from the refrigerant, which changes state from a vapour to a liquid.
