Land Rover Discovery II (UK)25 · Automatic gearbox - ZF4HP22/24
25 · Transmission

Electronic control unit - automatic transmission (page 2 of 2)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
Automatic gearbox - ZF4HP22/24Electronic control unit - automatic transmission · page 2 of 2

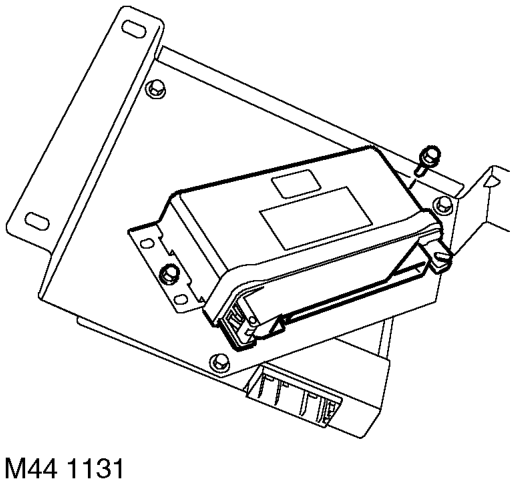

Diagram
  1. Remove 2 nuts securing ECU to mounting bracket and remove ECU.

Refit

  1. Position ECU to mounting bracket and secure with nuts.
  2. Connect multiplug to ECU.
  3. Position speaker power amplifier mounting bracket to body and secure with nuts.
  4. Position lower trim casing to seat and secure with screws and trim clip.
  5. Connect battery earth lead.
  6. Fit battery cover and secure fixings.
