Land Rover Discovery II (UK)25 · Automatic gearbox - ZF4HP22/24
25 · Transmission

Valve body assembly (page 2 of 2)

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs
Automatic gearbox - ZF4HP22/24Valve body assembly · page 2 of 2
Diagram

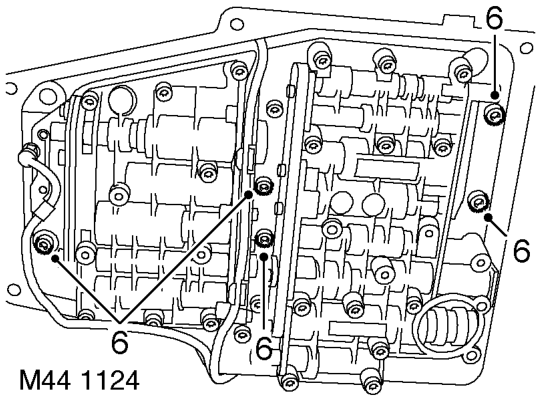

  1. Remove 6 long bolts securing valve body to gearbox.
Remove 6 long bolts securing valve body to gearbox.

Refit

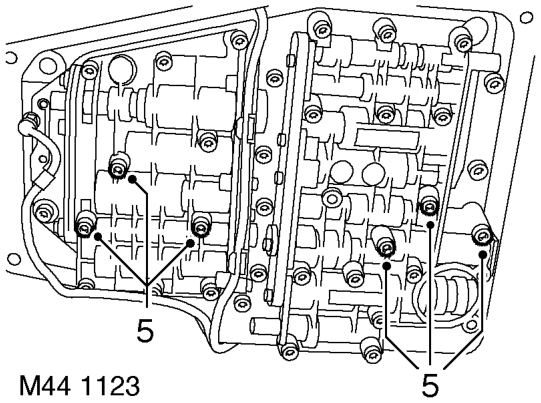

  1. Remove 5 short bolts securing valve body to gearbox.
Remove 5 short bolts securing valve body to gearbox.

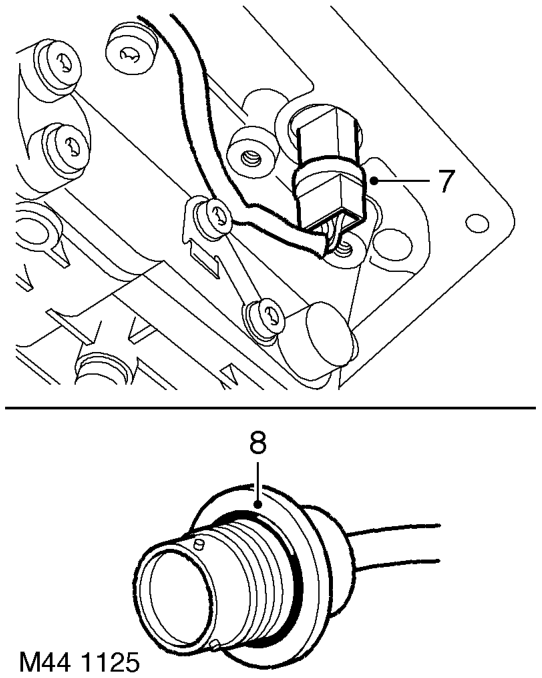

  1. Release speed sensor and remove valve body.
  2. Remove and discard 'O' ring from multiplug connector.
  3. Clean valve body and mating faces.
  4. Fit new 'O' ring to multiplug connector block.
  5. With assistance, position multiplug to gearbox housing and tighten nut.
  6. Align valve body to gearbox, ensure manual valve is correctly located. Position speed sensor retaining bracket, and tighten screws to 8 Nm (6 lbf.ft).
  7. Connect multiplug to gearbox connector.
  8. Fit gearbox oil filter. AUTOMATIC GEARBOX - ZF4HP22 - 24, REPAIRS, Filter - oil.
