C0660 connector pin details (Body control unit)

Make

Land Rover

Model

Discovery II (UK)

Section

Description and operation › C0660 connector pin details

Body control unitC0660 connector pin details

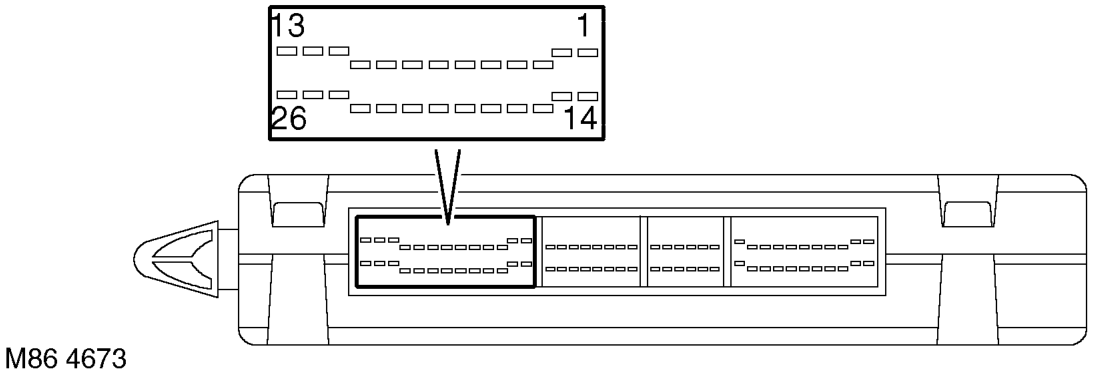

The pinout details for the BCU connectors are defined below:

C0660 connector pin details

Pin No.	Description	Input/Output
1	Ignition power supply	Input
2	Right front window - down	Input
3	Auxiliary power supply	Input
4	Passenger or rear door open	Input
5	Driver's door key lock	Input
6	RH indicator selected	Input
7	Front fog lamps selected	Input
8	Gear position feedback 'R'	Output
9	Gear position feedback 'P'	Output
10	SLS too high (audible warning)	Input
11	Earth	-
12	Vehicle raise/lower request	Output
13	Battery power supply	Input
14	Heated front screen selected	Input
15	Bonnet open	Input
16	CDL doors lock	Input
17	Driver's door open	Input
18	Left front window up	Input
19	Right front window up	Input
20	Rear washer pump	Input
21	Front intermittent wiper switch	Input
22	Gear position feedback '1'	Output
23	Gear position feedback '2'	Output
24	Gear position feedback '3'	Output
25	Gear position feedback 'D'	Output
26	Gear position feedback 'N'	Output
