C0664 connector pin details (Body control unit)

Make

Land Rover

Model

Discovery II (UK)

Section

Description and operation › C0664 connector pin details

Body control unitC0664 connector pin details · page 1 of 2

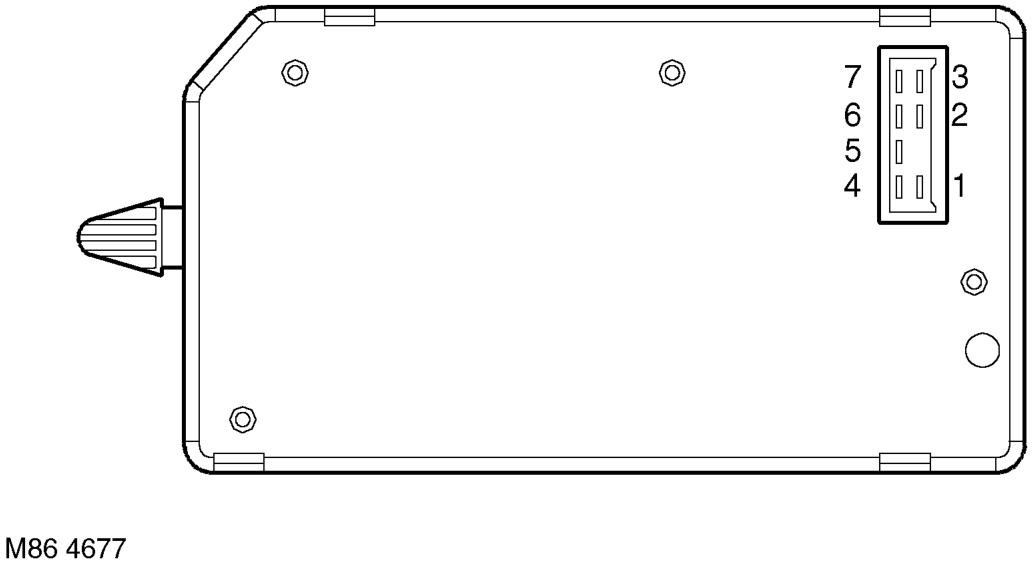

C0664 connector pin details

Pin No.	Description	Input/Output
1	Front left window down	Output
2	Front right window down	Output
3	Fuel flap release	Output
4	Front left window up	Output
5	Earth	-
6	Front right window up	Output
7	Battery power supply	Input

IDM inputs The IDM inputs are communicated to the BCU using the serial datalink so that the BCU can perform the necessary logic operations:

The V_in for IDM digital signals are defined as follows: l Logic 1 when V_in ≥ 8V. l Logic 0 when V_in ≤ 2V.

IDM input voltages between 2 and 8 volts are indeterminate and cannot be guaranteed.

Description	Signal type	System
Inertia switch	Digital	Locking/ Unlocking/ Alarm
Side lamps	Digital	Exterior lighting
Headlamp dipped beam	Digital	Exterior lighting
Headlamp main beam daylight running lamps	Analogue	Exterior lighting
RH direction indicators current sense	Analogue	Direction indicators/ Hazards/ Alarm
LH direction indicators current sense	Analogue	Direction indicators/ Hazards/ Alarm
Front wiper park sense	Digital	Wipers and washers

50 Diagnostics
