C0662 connector pin details (Body control unit)

Make

Land Rover

Model

Discovery II (UK)

Section

Description and operation › C0662 connector pin details

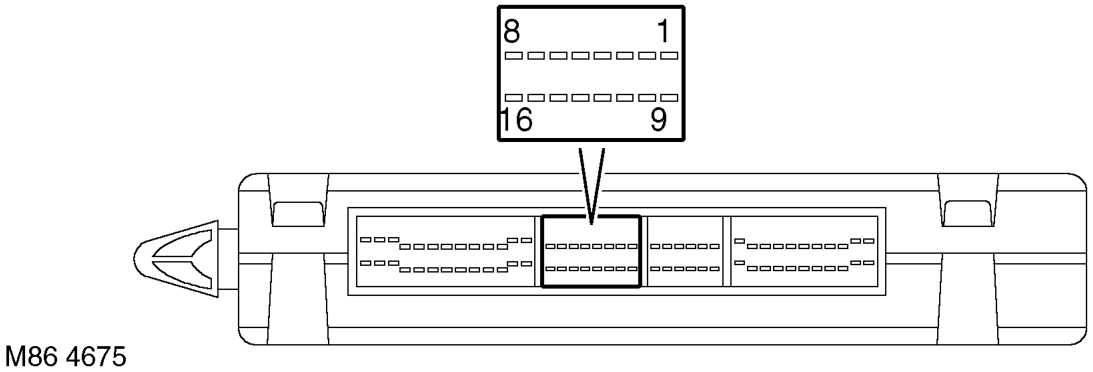

Body control unitC0662 connector pin details

C0662 connector pin details

Pin No.	Description	Input/Output
1	Front left window - down	Input
2	Ignition key inserted	Input
3	Rear wiper	Input
4	Vehicle horns	Input
5	Crank enable	Output
6	Gear position switch (Y contacts)	Input
7	CDL doors unlock	Input
8	Rear fog lamps selected	Input
9	Gear position switch (W contacts)	Input
10	Drive selected (HDC)	Output
11	Ignition key interlock solenoid	Output
12	Headlamp powerwash	Output
13	Gear position switch (X contacts)	Input
14	Not used	-
15	Transfer box - neutral selected	Input
16	Seat buckle fastened	Input
