C0663 connector pin details (Body control unit)

Make

Land Rover

Model

Discovery II (UK)

Section

Description and operation › C0663 connector pin details

Body control unitC0663 connector pin details

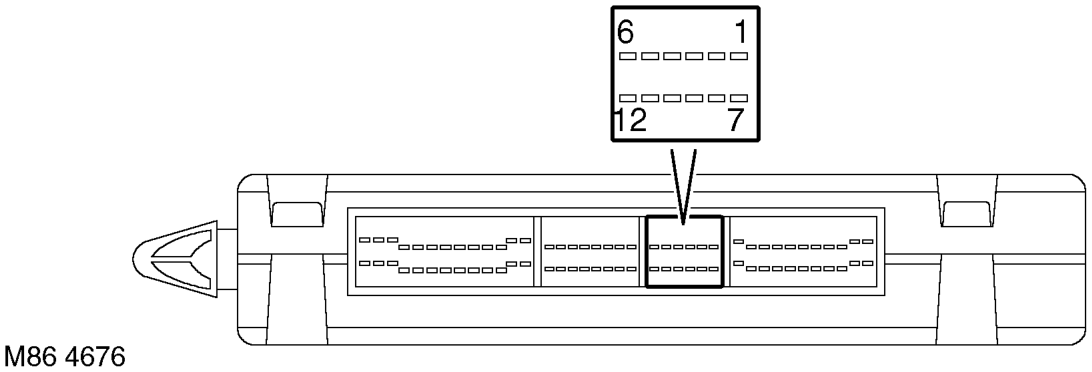

C0663 connector pin details

Pin No.	Description	Input/Output
1	Crank selected	Input
2	LH direction indicator selected	Input
3	Driver/Passenger seat enable	Output
4	Front fog lamps	Output
5	Heated rear screen selected	Input
6	Ultrasonic input	Input
7	Gear position switch (Z contacts)	Input
8	Ultrasonic power supply	Output
9	Courtesy lamps	Output
10	Feed to gear position switch (W, X, Y, Z contacts)	Output
11	Park/Neutral selected	Input
12	Hazard warning lamps	Input
