Repairs › Cable - handbrake
BrakesCable - handbrake

Refit

Cable - handbrake

$% 70.35.25

Remove

  1. Remove centre console. INTERIOR TRIM COMPONENTS, REPAIRS, Console - centre - automatic models. INTERIOR TRIM COMPONENTS, REPAIRS, Console - centre - manual models.

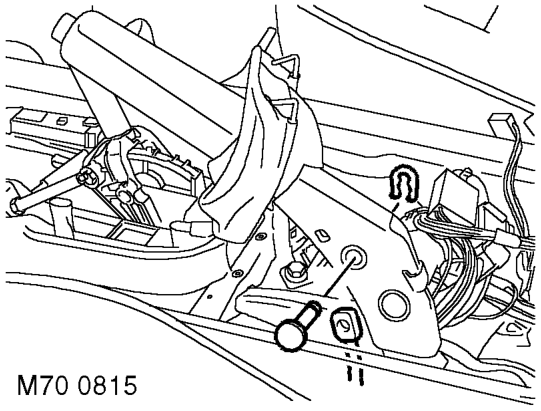

Cable - handbrake – Remove centre console.  INTERIOR TRIM COMPONENTS, REPAIRS, Console - centre - automatic m
  1. Remove clip and clevis pin securing cable to hand brake lever.
  2. Remove brake shoes from hand brake assembly. BRAKES, REPAIRS, Brake shoes - handbrake.

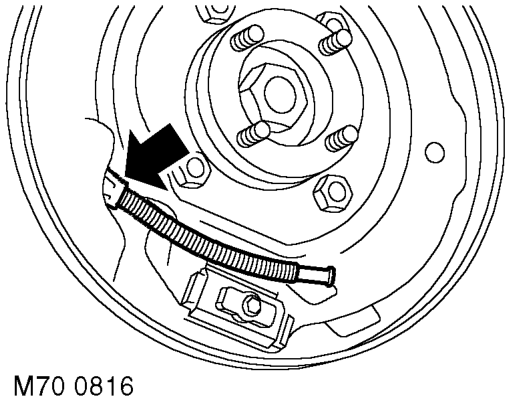

Cable - handbrake – Remove brake shoes from hand brake assembly.  BRAKES, REPAIRS, Brake shoes - handbrake.
  1. From below the vehicle, pull handbrake cable through transmission tunnel.
  2. Release handbrake cable from backplate.
  3. Fit and secure handbrake cable to backplate.
  4. Position hand brake cable through transmission tunnel.
  5. Fit brake shoes to hand brake assembly. BRAKES, REPAIRS, Brake shoes - handbrake.

4. Align cable to hand brake lever and secure with clip and clevis pin.

  1. Fit centre console. INTERIOR TRIM COMPONENTS, REPAIRS, Console - centre - automatic models. INTERIOR TRIM COMPONENTS, REPAIRS, Console - centre - manual models.
  2. Adjust handbrake. BRAKES, ADJUSTMENTS, Handbrake.
