ECU - Self levelling and anti locking brakes (SLABS)

Refit

1. Rotate disc by hand and scrape all scale and rust from around edge of disc. Clean location surfaces on caliper bracket.
2. Clean dust from brake parts using brake cleaning fluid.

WARNING: Do not use compressed air to clean brake components. Dust from friction materials can be harmful if inhaled.

3. Fit brake pads to caliper carrier.
4. Position caliper housing to carrier, align flats on guide pins with caliper housing.
5. Fit guide pin bolts and tighten to 30 Nm (22 lbf.ft).
6. Clean banjo bolt and fit new sealing washers.
7. Position hose to caliper and tighten banjo bolt to 32 Nm (24 lbf.ft).
8. Remove clamp from brake hose.
9. Bleed brakes. BRAKES, ADJUSTMENTS, Brake system bleeding.
10. Fit road wheel(s) and tighten nuts to 140 Nm (103 lbf.ft).
11. Remove stand(s) and lower vehicle.

ECU - Self levelling and anti locking brakes (SLABS)

$% 70.65.01

Remove

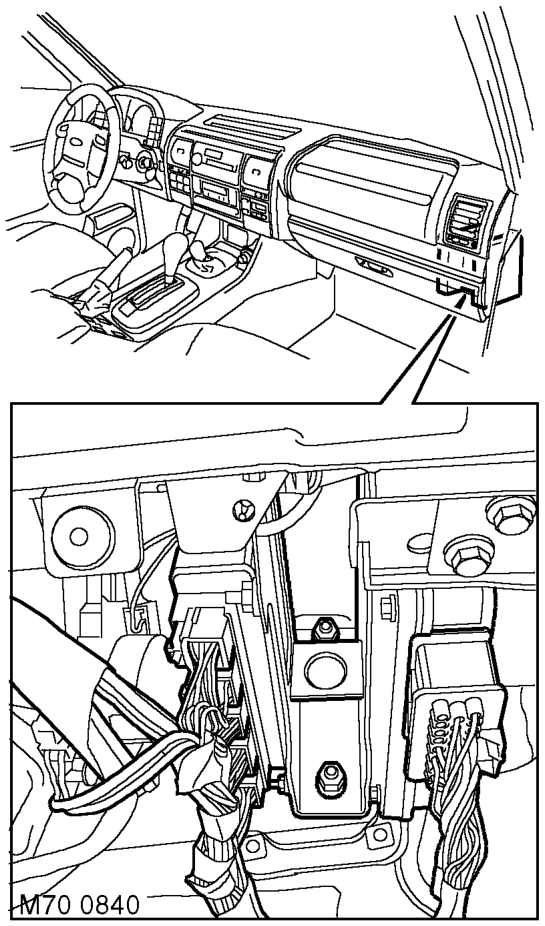

1. Remove BCU. BODY CONTROL UNIT, REPAIRS, Body control unit (BCU).

2. Remove 5 multiplugs from SLABS ECU.
3. Remove multiplug from ACE ECU.
4. Remove lower nut and loosen upper nut securing SLABS and ACE ECU bracket to body.
5. Remove ECU's and bracket assembly.
