Sensor – ABS – rear

Make
Land Rover
Model
Discovery II (UK)
Section
Repairs › Sensor – ABS – rear
BrakesSensor – ABS – rear · page 1 of 2

Sensor – ABS – rear

$% 70.65.31

ABS sensor is supplied fitted to wheel hub and must not be removed.

Remove

  1. Remove wheel hub. REAR SUSPENSION, REPAIRS, Wheel hub.

Refit

  1. Fit wheel hub. REAR SUSPENSION, REPAIRS, Wheel hub.

Modulator unit - ABS

$% 70.65.49

Remove

  1. Position cloth under modulator to absorb fluid spillage.

CAUTION: Brake fluid will damage paint finished surfaces. If spilled, immediately remove fluid and clean area with water.

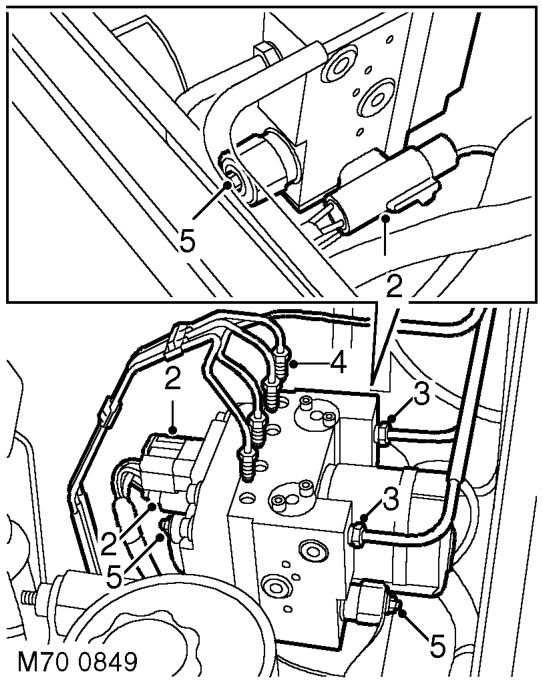

Modulator unit - abs – Position cloth under modulator to absorb fluid spillage.
  1. Disconnect 3 multiplugs from ABS modulator.
  2. Disconnect 2 inlet brake pipe unions from pump side of modulator.

CAUTION: Always fit plugs to open connections to prevent contamination.

  1. Disconnect 4 outlet brake pipe unions from top of modulator.

CAUTION: Always fit plugs to open connections to prevent contamination.

  1. Loosen 3 nuts securing modulator to mounting bracket.
  2. Release and remove modulator from mounting bracket.
  3. Remove 3 mounting rubbers from modulator.
